High Accuracy Aliquam Electromagnetic fluxus meter

In domo / Productio / Magna aqua meter / High Accuracy Aliquam Electromagnetic fluxus meter
High Accuracy Aliquam Electromagnetic fluxus meter
  • High Accuracy Aliquam Electromagnetic fluxus meter

Km08-02

High Accuracy Aliquam Electromagnetic fluxus meter

Contact UsHigh Accuracy Aliquam Electromagnetic fluxus meter
PREV: Summus qualitas remotis electro stafflless dolor aqua meter ad metimur in volumine fluxus liquidis in pipelines NEXT:Summus qualitas remotis electro stafflless dolor aqua meter ad metimur in volumine fluxus liquidis in pipelines
High Accuracy Aliquam Electromagnetic fluxus meter

Descriptio

I. Product Features:

  • Omnes immaculatam ferro habitationi, IMPERVIUS, anti-magnetica, anti-corrosio, corrosio repugnant cadmiae basi aqua, secundum pingere
  • Aliquam ferro corpus et Ip68 tutela elit.
  • Securus installation et sustentationem.
  • Idoneam variis dura velit environments aqua metris.
  • Longa-term stabilis operatio
  • Functiones ut data recording, repono, query, terrorem, etc., et notitia vestigia.
  • Optimum bellum resistentiam, princeps praecisione, amplis rationis
  • Potest metiretur deinceps et vicissim fluxus rates.
  • Large fluxus rate, measurable range Ratio et summus praecisione mensura.
  • Simple magna LCD
  • Built-in altilium coegi diu Lifespan (VI I warantum)
  • Auto-diagnostic culpa Promptus
  • Tamper-probationem sigillum
  • Management Software: Real-Tempus Display, Historical Data Query, Data Report Display Et Printing, Fabrica Group Management, Map Distribution Display Display

II. Technical data:

Aqua pressura 0.6MPA-1.6MPA
Q3 / Q1 400/500/1000
DN (mm) DN40, DN500
Mensurae accurate I II
Mensurae 0.001 ~ 10m / s
Ambientium temperatus -40 ~ LX ℃
Altilium 3.6v Lithium aut 12VDC 3.6v Lithium
Constructio Standalone / Split
Materiae HR Flexilis F4: PTFE
Flange et corpus materiales Aliquam / Carbon Steel
Communicationis interface Rs485, GSM, GPRS, NB-IOT, Cat. I
Flue profile sensum classes U0d0
Funem longitudo V meter
TORMENTUM <= X KPA
Aqua temperatus T50 T50
Mensuram tempus I Secundum / Tempus ~ XV seconds / tempus Novifacta
MENDICULUS V temporibus / I secundo
Mensuram directionem Positive et negans duo-via mensurae
Input munus Pressura, temperatus
0PERATIO modus Bluetooth, Wireless operatio (infrared manu operator)
IMPERVIUS IP68
Application: pro PROLIXUS Liquid Conductor> XX

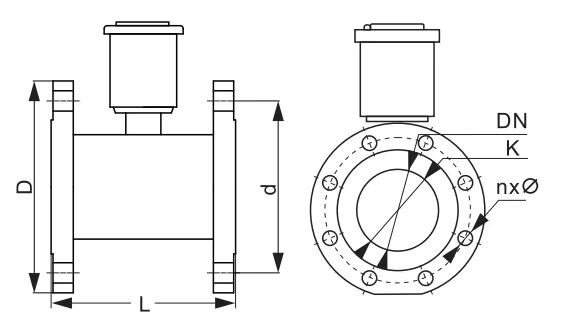

III. Installation dimensionem

DN (mm) MPA Mensurae (mm)
L D K Diametro cochlea (mm) Qty ad stupra
40 1.6 / 1.0 200 145 110 M16 4
50 1.6 / 1.0 200 165 125 M16 4
80 1.6 / 1.0 200/235 200 160 M16 8
100 1.6 / 1.0 250 215 180 M16 8
150 1.6 / 1.0 300 280 240 M20 8
200 1.6 / 1.0 350 335 295 M20 12
250 1.6 / 1.0 400 390 350 M20 12
300 1.6 / 1.0 500 440 400 M20 16
350 1.6 / 1.0 500 500 460 M20 16
400 1.6 / 1.0 600 565 510 M22 20
450 1.6 / 1.0 600 615 560 M22 20
500 1.6 / 1.0 600 670 620 M22 20

IV. Principio Technical Data (Latin: GB / T778-2018)

R = D graone1 R = M Grade2
DN (cm) Q3 (M3 / h) Q2 (m3 / h) Q1 (M3 / h) Q2 (m3 / h) Q1 (M3 / h)
40 25 0.080 0.050 0.040 0.025
50 40 0.128 0.080 0.064 0.040
65 63 0.200 0.125 0.101 0.063
80 100 0.320 0.200 0.160 0.100
100 160 0.512 0.320 0.256 0.160
125 250 0.800 0.500 0.400 0.250
150 400 1.280 0.800 0.640 0.400
200 630 2.015 1.260 1.008 0.630
250 1000 3.200 2.000 1.600 1.000
300 1600 5.120 3.200 2.560 1.600
