Km05-02

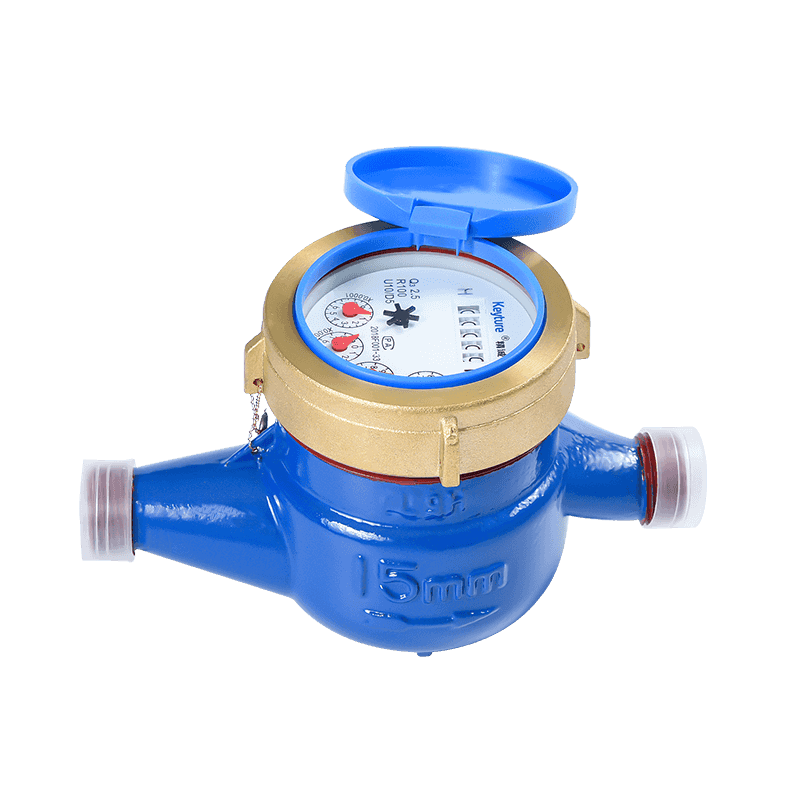

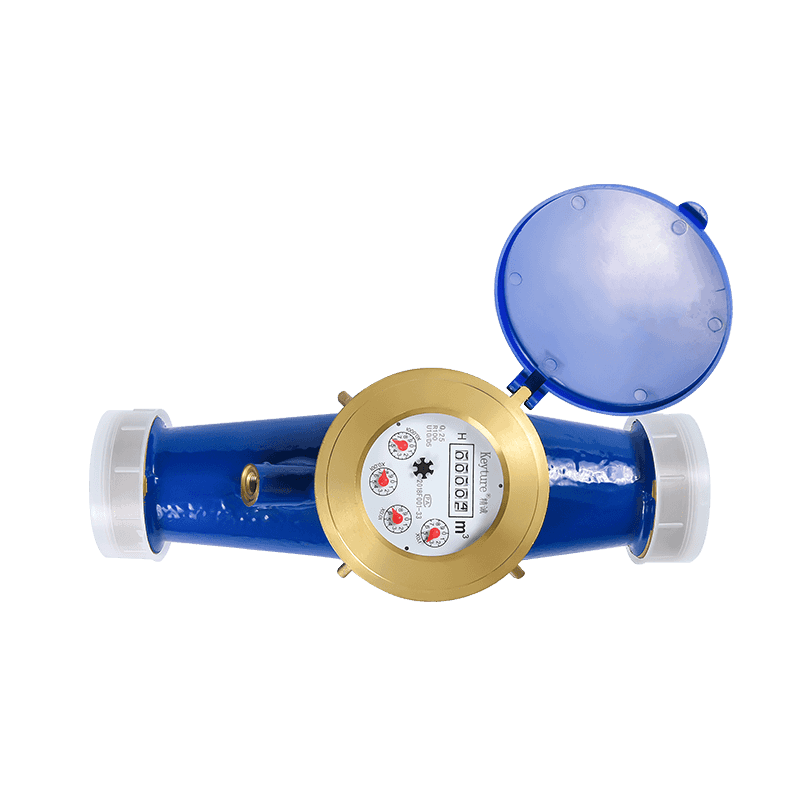

Mensuræ, memoriam et ostendens aqua consummatio pertransiens per Pipeline. Multi-Jet Type, arida type subcriptio, magnetica coegi, anti-magnetica intercessiones, anti-glacians, diu-term patet reading.long diuturnitatem et elevatum praecisione Gustalled.Longed.
Descriptio
I. Features
● capere multi-jet genus.
● aridam type subcriptio, magnetica coegi, anti-magnetica intercessiones, anti-glacians, diu terminus lectio, tamper probationem.
● Material: ære, ferrum, plastic corpus ad optionem.
● non-reditus valvae is available.
● un-affectus a GLAREUS et particulates.
● provisum est plumbum sigillum et dustproof operimentum.
● Confírma ad ISO4064.
● Available ad IP68.
II. Caput damnum curva
III. ERROR curva

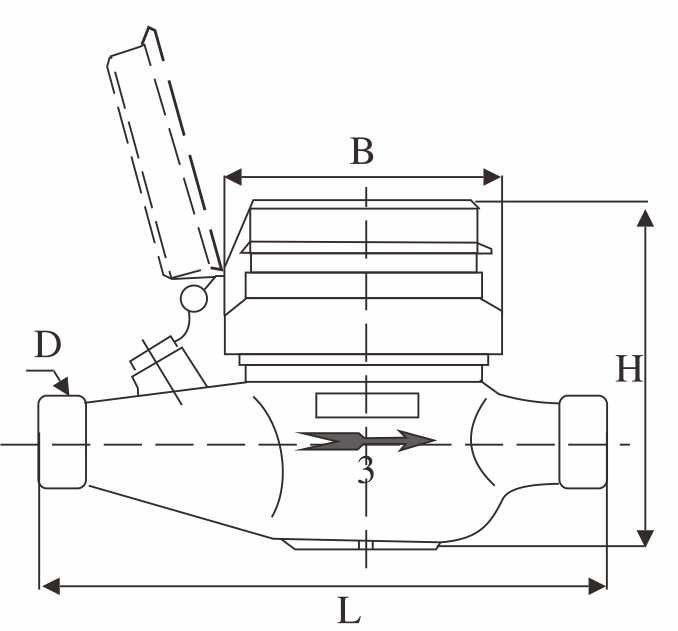

IV. Installation dimensionem
| Item non | LXSG, XV | Lxsg, XX | Lxsg-XXV | Lxsg-XXXII | Lxsg-XL | |
| L1 | mm | 165 | 190 | 225 | 230 | 245 |
| L | mm | 260 | 295 | 345 | 350 | 375 |
| H | mm | 110 | 110 | 115 | 115 | 115 |
| W | mm | 98 | 98 | 110 | 110 | 110 |
| Filum | D (mm) | G3 / IV " | G1 " | G1 1/4 " | G1 1/2 " | G2 " |
| d (mm) | R1 / II | R3 / IV | R1 | R1 1/4 | R1 1/2 | |
| Pondus | Cum Unionibus (kg) |
|
|
|
|
|
| sine unionibus (kg) | 1.2 | 1.4 | 1.8 | 2 | 2.5 | |
V. Main Technical Data
| Model Number | LXSG, XV | Lxsg, XX | Lxsg-XXV | Lxsg-XXXII | Lxsg-XL | ||||||||||
| Nominis diameter (DN) [mm] | 15 | 20 | 25 | 32 | 40 | ||||||||||
| Ratio Q3 / Q1 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 |
| ONERO fluxus rate (Q4) [M³ / h] | 3.125 | 3.125 | 3.125 | 5 | 5 | 5 | 7.875 | 7.875 | 7.875 | 12.5 | 12.5 | 12.5 | 20 | 20 | 20 |
| Permanent fluxus rate (Q3) [M³ / h] | 2.5 | 2.5 | 2.5 | 4 | 4 | 4 | 6.3 | 6.3 | 6.3 | 16 | 16 | 16 | 25 | 25 | 25 |
| Transitional fluxus rate (Q2) [M³ / h] | 0.05 | 0.04 | 0.025 | 0.08 | 0.064 | 0.04 | 0.126 | 0.1008 | 0.063 | 0.2 | 0.16 | 0.1 | 0.32 | 0.256 | 0.16 |
| Minimum fluxus rate (Q1) [M³ / h] | 0.03125 | 0.025 | 0.015625 | 0.05 | 0.04 | 0.025 | 0.07875 | 0.063 | 0.039375 | 0.125 | 0.1 | 0.0625 | 0.2 | 0.16 | 0.1 |
| Genus accuracy | 2 | ||||||||||||||
| Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι) | ± V% | ||||||||||||||
| Maximum permissibilis error ad superius fluunt rate zonam (mpeμ) | ± II% ad aquam habens temperatus ≤30 ℃ ± III% ad aquam habens temperatus> XXX ℃ | ||||||||||||||
| Genus temperatus | T30, T50 | ||||||||||||||
| Aqua pressura classes | Map XVI | ||||||||||||||
| Pressura-damnum classes | △ P63 | ||||||||||||||
| Significat range [M³] | XCIX CMXCIX | ||||||||||||||
| Resolution de significans fabrica [M³] | 0.00005 | ||||||||||||||
| Flue profile sensum classes | U10 D5 | ||||||||||||||
| Orientatio limitation | Horizontal | ||||||||||||||
