Descriptio
I. application
Usus est pro familia aut residentialibus unitatibus ad metimur, memoria et ostentationem in volumine frigida aqua fluit per Pipeline. Type, ut capere multi, infectum type subcriptio, princeps sensibility, glycerin-signati dial ensures longa-terminus Lectio, altum aqua qualitas requisita.
II. Features
● capere multi-jet genus.
● infectum type subcriptio, princeps sensibilitatem, glycerin, signati dial ensures diu-term patet Lectio, tamper probationem.
● Material: ære, ferrum, plastic corpus ad optionem.
● non-reditus valvae is available.
● un-affectus a GLAREUS et particulates.
● provisum est plumbum sigillum et dustproof operimentum.
● Confírma ad ISO4064.
● Available ad IP68.

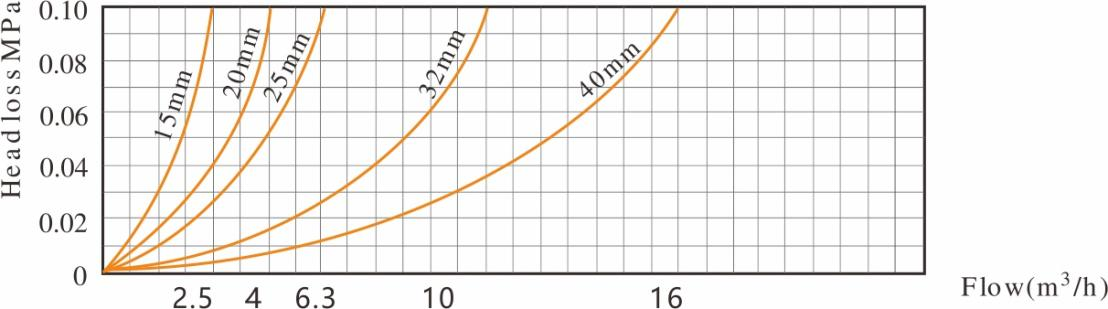

III. Caput damnum curva
IV. ERROR curvae
V. Installation dimensionem
| Item non | LXS, XV | Lxs-XX | Lxs-XXV | Lxs-XXXII | LXs-XL | |
| L1 | mm | 260 | 295 | 345 | 350 | 375 |
| L | mm | 165 | 190 | 225 | 230 | 245 |
| H | mm | 110 | 110 | 115 | 115 | 115 |
| W | mm | 98 | 98 | 110 | 110 | 110 |
| Filum | D (mm) | G3 / IV " | G1 " | G1 1/4 " | G1 1/2 " | G2 " |
| d (mm) | R1 / II | R3 / IV | R1 | R1 1/4 | R1 1/2 | |
| Pondus | Cum Unionibus (kg) |
|
|
|
|
|
| sine unionibus (kg) | 1.2 | 1.4 | 1.8 | 2 | 2.5 | |
VI. Principio Technical Data
| Model Number | LXS, XV | Lxs-XX | Lxs-XXV | Lxs-XXXII | LXs-XL | ||||||||||
| Nominis diameter (DN) [mm] | 15 | 20 | 25 | 32 | 40 | ||||||||||
| Ratio Q3 / Q1 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 |
| ONERO fluxus rate (Q4) [M³ / h] | 3.125 | 3.125 | 3.125 | 5 | 5 | 5 | 7.875 | 7.875 | 7.875 | 12.5 | 12.5 | 12.5 | 20 | 20 | 20 |
| Permanent fluxus rate (Q3) [M³ / h] | 2.5 | 2.5 | 2.5 | 4 | 4 | 4 | 6.3 | 6.3 | 6.3 | 10 | 10 | 10 | 16 | 16 | 16 |
| Transitional fluxus rate (Q2) [M³ / h] | 0.05 | 0.04 | 0.025 | 0.08 | 0.064 | 0.04 | 0.126 | 0.1 | 0.063 | 0.2 | 0.16 | 0.1 | 0.32 | 0.256 | 0.16 |
| Minimum fluxus rate (Q1) [M³ / h] | 0.032 | 0.025 | 0.015 | 0.05 | 0.04 | 0.025 | 0.08 | 0.063 | 0.039375 | 0.125 | 0.1 | 0.0625 | 0.2 | 0.16 | 0.1 |
| Genus accuracy | 2 | ||||||||||||||
| Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι) | ± V% | ||||||||||||||
| Maximum permissibilis error ad superius fluunt rate zonam (mpeμ) | ± II% ad aquam habens temperatus ≤30 ℃ | ||||||||||||||
| Genus temperatus | T30, T50 | ||||||||||||||
| Aqua pressura classes | Map XVI | ||||||||||||||
| Pressura-damnum classes | △ P63 | ||||||||||||||
| Significat range [M³] | XCIX CMXCIX | ||||||||||||||
| Resolution de significans fabrica [M³] | 0.00005 | ||||||||||||||
| Flue profile sensum classes | U10 D5 | ||||||||||||||
| Orientatio limitation | Horizontal | ||||||||||||||
