Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve

In domo / Productio / Mechanicus aqua meter / Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve

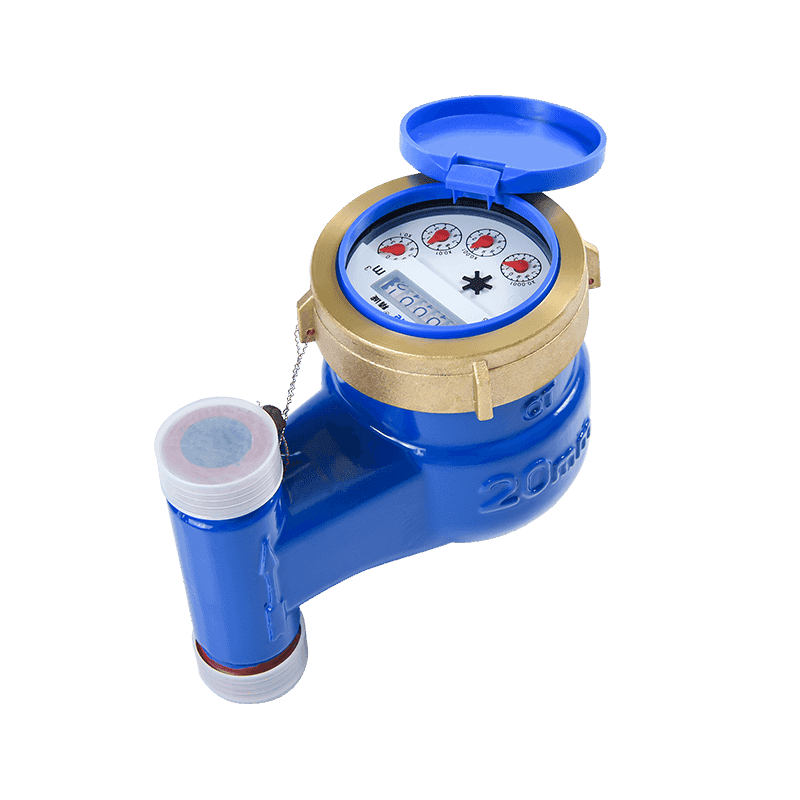

Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve
  • Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve
  • Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve
  • Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve
  • Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve
  • Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve
  • Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve
  • Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve
  • Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve
  • Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve
  • Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve

KM05-14

Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve

Ultrasonic remotis aqua meter est combined influunt sensorem cum microprocessor et adoptat provectus ultrasonic measurement technology ad precise et reliable mensuræ aquam consummatio ad commercial et industriae applications. Longum officium, completum output communicationis munera, in occursum omnis generis communicationis et wireless networking requisitis, cum parva influunt deprehensio capabilities.

Contact UsVerticali infectum genus vane rota mechanica frigida aqua meter cum sleeve
PREV: Single-jet aes corpus arida genus frigida aqua meter NEXT:Udo genus vane rota plastic corpus multi jet frigida aqua meter
Verticali infectum genus vane rota mechanica frigida aqua meter cum sleeve

Descriptio

I. Features

  • Type capere multi-Jet, calces driving.
  • Udo type subcriptio, anti-glacians, diu terminus lectio, tamper probationem.
  • Materiam, ære, ferrum, plastic corpus ad optionem.
  • Un-affectus a GLAREA et particulates.
  • Devertis sigillum et dudproof operimentum.
  • Confírma ISO4064.
  • Available ad IP68.

II. Caput damnum curva

III. ERROR curva

IV. Installation dimensionem

Item non LXSGL, XV Lxsgl-XX Lxsgl-XXV
L mm 193 210 225
L1 mm 98 105 110
H mm 115 115 115
W mm 100 100 100
Filum D (mm) G3 / IV " G1 " G1 1/4 "
d (mm) R1 / II R3 / IV R1
Pondus cum unionibus
kg
sine unionibus
kg 		1.5 1.7 1.8

V. Main Technical Data

Model Number LXSGL, XV Lxsgl-XX Lxsgl-XXV
Nominis diameter (DN) [mm] 15 20 25 32 40
Ratio Q3 / Q1 R80 R100 R160 R80 R100 R160 R80 R100 R160 R80 R100 R160 R80 R100 R160
ONERO fluxus rate (Q4) [M³ / h] 3.125 3.125 3.125 5 5 5 7.875 7.875 7.875 12.5 12.5 12.5 20 20 20
Permanent fluxus rate (Q3) [M³ / h] 2.5 2.5 2.5 4 4 4 6.3 6.3 6.3 16 16 16 25 25 25
Transitional fluxus rate (Q2) [M³ / h] 0.05 0.04 0.025 0.08 0.064 0.04 0.126 0.1008 0.063 0.2 0.16 0.1 0.32 0.256 0.16
Minimum fluxus rate (Q1) [M³ / h] 0.03125 0.025 0.015625 0.05 0.04 0.025 0.07875 0.063 0.039375 0.125 0.1 0.0625 0.2 0.16 0.1
Genus accuracy 2
Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι) ± V%
Maximum permissibilis error ad superius fluunt rate zonam (mpeμ) ± II% ad aquam habens temperatus ≤30 ℃
± III% ad aquam habens temperatus> XXX ℃
Genus temperatus T30, T50
Aqua pressura classes Map XVI
Pressura-damnum classes △ P63
Significat range [M³] XCIX CMXCIX
Resolutio 0.00005
Significans fabrica [M³]
Flue profile sensum classes U10 D5
Orientatio limitation Vertical
