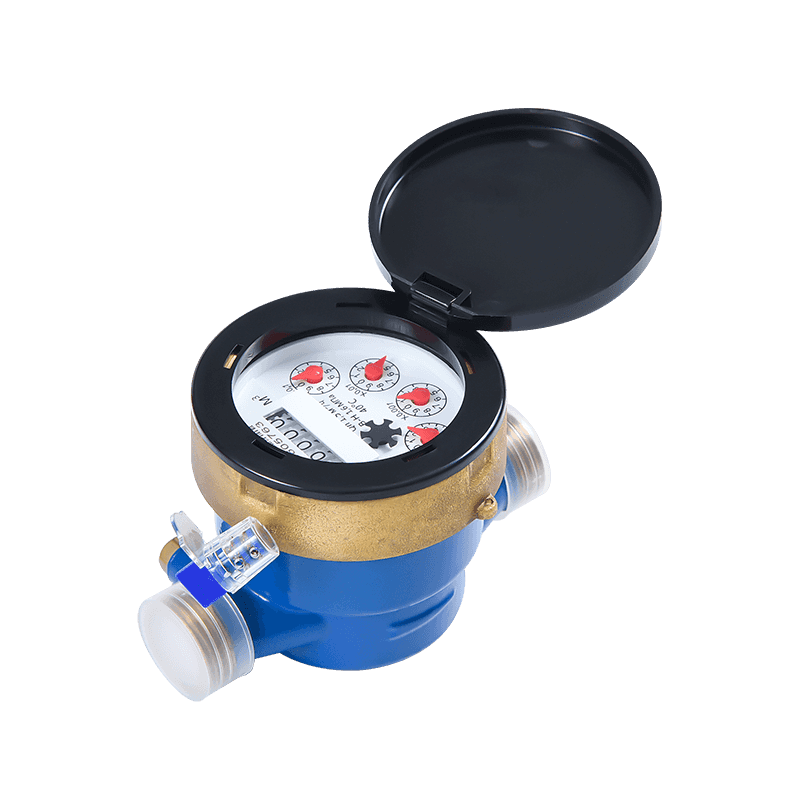

Una-jet aes corpus arida genus frigida aqua meter cum CCCLX ° rotating operculo

Model Number

LXSG, XV

Nominis diameter (DN) [mm]

15

20

25

32

40

Ratio Q3 / Q1

R80

R100

R160

R80

R100

R160

R80

R100

R160

R80

R100

R160

R80

R100

R160

ONERO fluxus rate (Q4) [M³ / h]

3.125

3.125

3.125

5

5

5

7.875

7.875

7.875

12.5

12.5

12.5

20

20

20

Permanent fluxus rate (Q3) [M³ / h]

2.5

2.5

2.5

4

4

4

6.3

6.3

6.3

10

10

10

16

16

16

Transitional fluxus rate (Q2) [M³ / h]

0.05

0.04

0.025

0.08

0.064

0.04

0.126

0.1

0.063

0.2

0.16

0.1

0.32

0.256

0.16

Minimum fluxus rate (Q1) [M³ / h]

0.032

0.025

0.015

0.05

0.04

0.025

0.08

0.063

0.039375

0.125

0.1

0.0625

0.2

0.16

0.1

Genus accuracy

2

Maximum permissibilis error

Nam inferioribus influunt rate zona (MPEAC)

± V%

Maximum permissibilis error est

Et superius fluunt rate zona (MPEμ)

± II% ad aquam habens temperatus ≤30 ℃
± III% ad aquam habens temperatus> XXX ℃

Genus temperatus

T30, T50

Aqua pressura classes

Map XVI

Pressura-damnum classes

△ P63

Significat range [M³]

XCIX CMXCIX

Resolutio
Significans fabrica [M³]

0.00005

Flue profile sensum classes

U10 D5

Orientatio limitation

Horizontal
