KM03-RF03
Arido typus Register, aqua consummatio per dives tradit in PC, Residential Application cum magnitudine ex DN15 ad DN20.
Descriptio
I. application
JingCheng RF Card PROMUTUUS aqua meter est novum mensuræ instrumentum usus microprocessor ut animadverto aqua collectio, dispensando, ostentationem et reservatis.
2. Features
● RF card aqua meter usus pre-solvit via ad consequi novum administratione modus "Purchase, deinde uti".
● ostende diversis aequo prices aqua unum card potest esse pro aliquot metris.
● Double Lectio Display: mechanica et electronic legere, unique altilium tutela.
● VIII functiones:; anti-furtum; Anti-magnetica intercessiones; gradum aqua price munus; Data query; facile mutare altilium; Libra terror; accurate computatis; prope valvae cum arreragiis.
● firmum perficientur, lata application, humilis potentia consummatio, diu vita.
● electronic component cum boni signantes perficientur, et princeps tutela gradu.
● meter corpus capere environmental tutela material, princeps vires, princeps lenta.

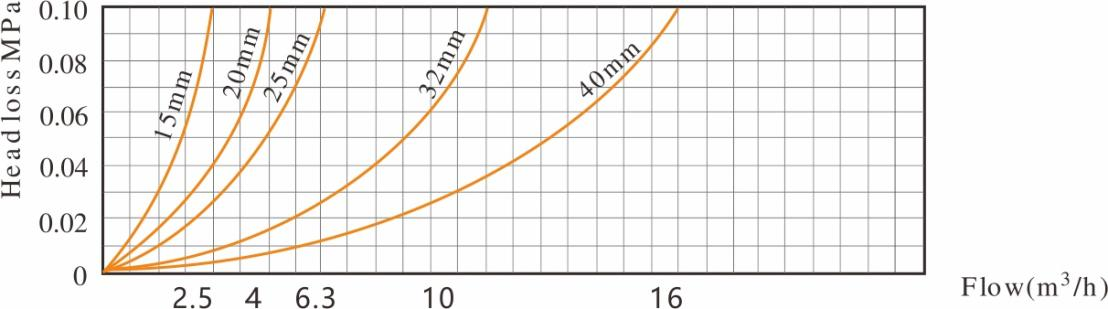

III. Caput damnum curva
IV. ERROR curvae
V. Installation dimensionem
| Item non | L1 Longitudo | L Longitudo | W Latitudo | H COGITO | Pondus / PCs (kg) | Mensurae (cm) | Filum | |
| G.W. /N.w | D | d | ||||||
| Lxsgz, 15e | 260mm | 165mm | 90mm | 110mm | 1.2 |
| G3 / IV | R1 / II |
| Lxsgz-20E | 295mm | 190mm | 90mm | 110mm | 1.4 |
| G1 | R3 / IV |
| Lxsgz, 25e | 345mm | 225mm | 90mm | 110mm | 1.6 |
| G1-1 / IV |
|
VI. Technical data
| Operating voltage | Rated Operational Voltage | Electricity | IMPLICITAS | Ambientium temperatus | Humilis voltage praesidium | Volumen aqua per pulsum signum |
| 2.5-3.6v | 3.6v | <20MA | <25Ua | 0.1-55 ℃ | 2.4v | 100l |
VII. Main Technical Data
| Model Number | Lxsgz, 15e | Lxsgz-20E | Lxsgs, 25e | ||||||
| Nominis diameter (DN) [mm] | 15 | 20 | 25 | ||||||
| Ratio Q3 / Q1 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 |
| ONERO fluxus rate (Q4) [M³ / h] | 3.125 | 3.125 | 3.125 | 5 | 5 | 5 | 7.875 | 7.875 | 7.875 |
| Permanent fluxus rate (Q3) [M³ / h] | 2.5 | 2.5 | 2.5 | 4 | 4 | 4 | 6.3 | 6.3 | 6.3 |
| Transitional fluxus rate (Q2) [M³ / h] | 0.05 | 0.04 | 0.025 | 0.08 | 0.064 | 0.04 | 0.126 | 0.1 | 0.063 |
| Minimum fluxus rate (Q1) [M³ / h] | 0.032 | 0.025 | 0.015 | 0.05 | 0.04 | 0.025 | 0.08 | 0.063 | 0.039375 |
| Genus accuracy | 2 | ||||||||
| Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι) | ± V% | ||||||||
| Maximum permissibilis error ad superius fluunt rate zonam (mpeμ) | ± II% ad aquam habens temperatus ≤30 ℃ | ||||||||
| Genus temperatus | T30, T50 | ||||||||
| Aqua pressura classes | Map XVI | ||||||||
| Pressura-damnum classes | △ P63 | ||||||||
| Significat range [M³] | XCIX CMXCIX | ||||||||
| Resolution de significans fabrica [M³] | 0.00005 | ||||||||
| Flue profile sensum classes | U10 D5 | ||||||||
| Orientatio limitation | Horizontal | ||||||||
