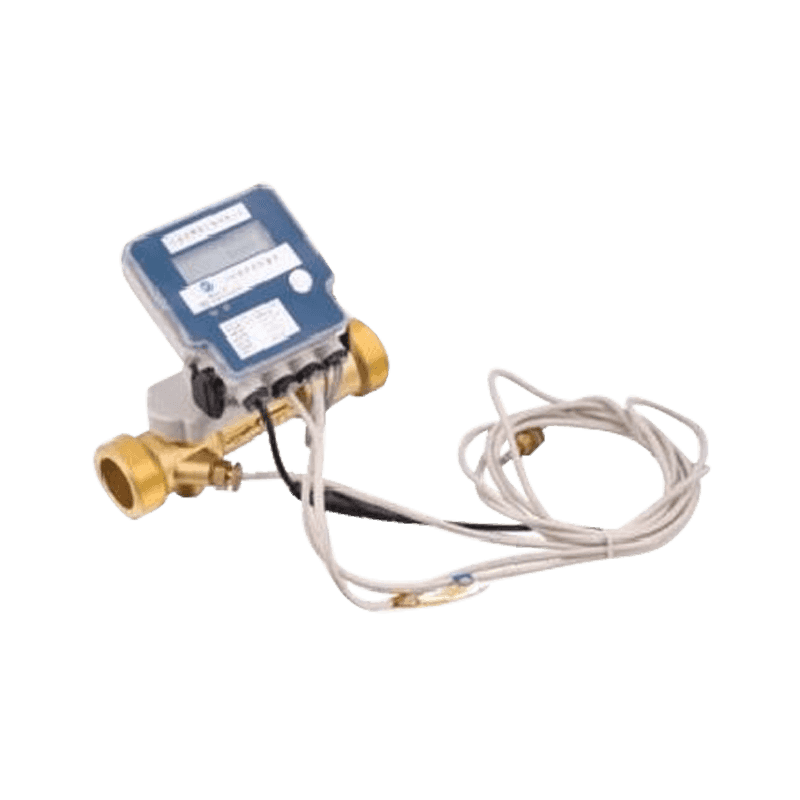

Ultrasonic remotis calor aqua meter
  • Ultrasonic remotis calor aqua meter

Km10-01

Ultrasonic remotis calor aqua meter

Ultrasonic remotis aqua meter est combined influunt sensorem cum microprocessor et aduenit ad provectus ultrasonic mensuram technology mensuræ aquam consummatio. Gradus præcipiens, abnormes terrorem, altilium securus reponere, automatic meter Lectio, accurate exosculatio, aqua notitia analysis et dispensando, Leakage Analysis.

Contact UsUltrasonic remotis calor aqua meter
PREV: No previous article NEXT:Mole Diameter ultrasonic remotis calor aqua meter
Ultrasonic remotis calor aqua meter

Descriptio

I. Features

  • Longinquus AMR-Promptus System M-bus vel wireless communicationis, convenient ad administrare user scriptor aqua consummatio.
  • Move partes non moventur, malum aquae quality available, amplis Ratio (R400), IP68.
  • Mihi altius mensuram accurate et meliorem stabilitatem.
  • Calida aqua tantum.
  • Digital Display (VIII, annis altilium)
  • Deprehendere uterque deinceps et converso influunt.
  • Dum ducere sigillum et pulvis-probationem operimentum
  • Environment B, E1

2. Operatio

Aqua temperature≤50 ℃ frigida aqua; calida aqua meter ≤90 ℃.

Aqua Presse≤1Mpa (PN: 1.6MPA / 16BBBAR)

3. Electronic parameter

Temperatus sensorem HYMENAEOS Error Humilis current praesidium Opus temperatus Current Static Rated Operational Voltage Operating voltage
<0.05 ℃ <2.5v 0.1 ~ LV ℃ <8UA 3.6v 2.5v, 3.6v

IV. Caput damnum curva

V. ERROR curva

VI. Installation dimensionem

Item non 20 25 32
L1 mm 130 160 180
L mm 230 270 295
H mm 100 105 110
W mm 100 100 100
Filum mm G1 G1-1 / IV G1-1 / II
Pondus kg 0.7 0.9 1.2

7. Main Technical Data

Nominis diameter
( Dn ) 		8mm 15mm 20mm 25mm
Q4M³ / h 1.25 3.125 5 7.875
Q3 M³ / h 1 2.5 4 6.3
Q2M³ / h R80 / 50 80 126
R100 / 40 64 100.8
R160 10 25 40 63
Q1M³ / h R80 / 31.25 50 78.75
R100 / 25 40 63
R160 6.25 15.625 25 39.375
Resolvo in
significans fabrica [M³] 		0.00001
Significat range [M³] 99999.9999
Nominal
Diameter ( Dn ) 		Q3 / Q1 Q4 M³ / h Q3 M³ / h Q2 M³ / h Q1 M³ / h Resolutionem demonstrando fabrica [M³] Significat range [M³]
32 mm R80 12.5 10 200 125 0.00001 99999.99
R100 160 100
R160 100 62.5
XL mm R80 20 16 320 200
R100 256 160
R160 160 100
50 mm R80 31.25 25 500 312.5
R160 250 156.25
R200 200 125
65 mm R80 50 40 800 500
R160 400 250
R200 320 200
80 mm R80 78.75 63 1250 787.5
R160 625 393.75
R200 504 315
100 mm R80 125 100 2000 1250
R160 1000 625
R200 800 500
125 mm R80 200 160 3200 2000
R160 1600 1000
R200 1280 800
150 mm R80 312.5 250 5000 3125
R160 2500 1562.5
R200 2000 1250
CC mm R80 500 400 8000 5000
R160 4000 2500
R200 3000 2000
CCL mm R80 787.5 630 12600 7875
R160 5300 3937.5
R200 5040 3150
CCC mm R80 1250 1000 20000 12500
R160 10000 6250
R200 8000 5000
