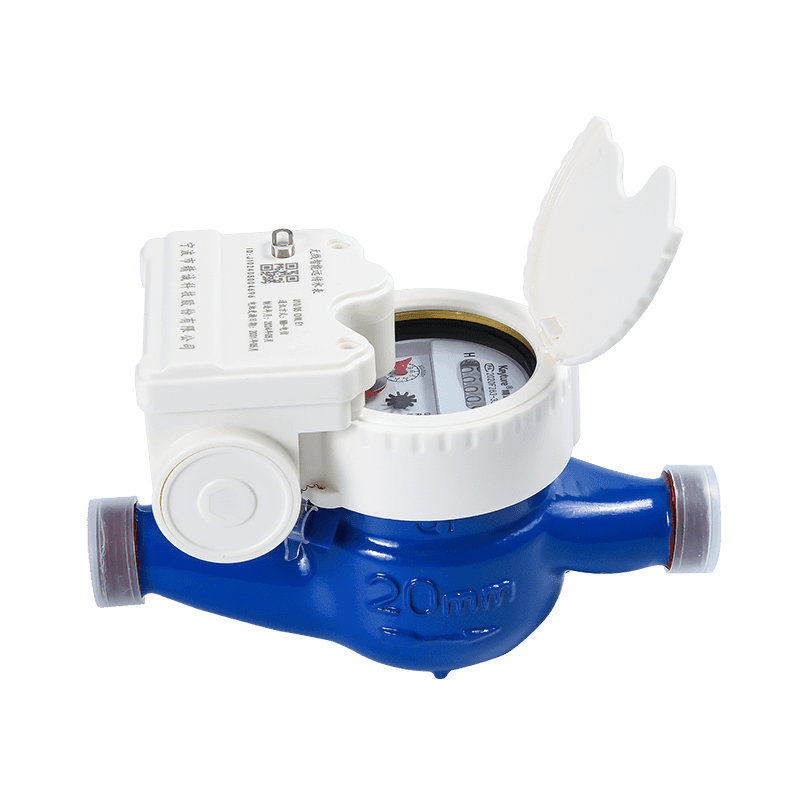

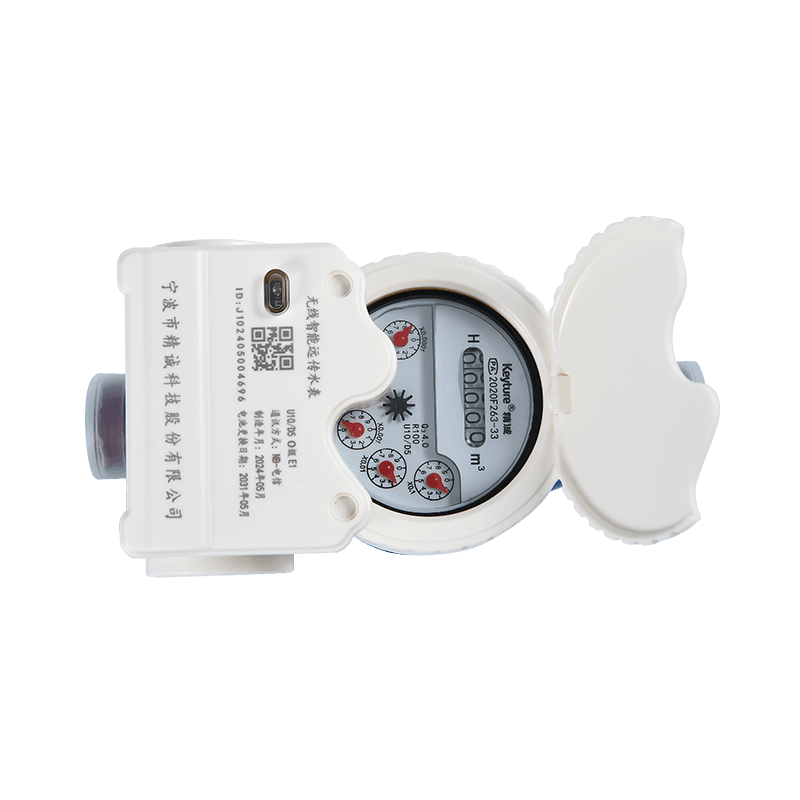

Km01-01
Haec series products sunt wireless remotis aqua metris quod separate mechanicus pars intelligentes moduli omnino et upload aquam consummatio per NB \ Lora Internet. Communicationis moduli directe installed in basi aqua meter. Institutionem requisita sunt simplex et processus est celeri. In aqua meter adoptat independens lectio monstratorem, quod non intermixti cum electronic moduli et non habet volucres
Descriptio
I. Features
● Multi-Jet Vane Rota.
● infectum type subcriptio, princeps sensibilitatem, glycerin, signati dial ensures diu terminus lectio.
● split genus, separatum signantes structuram, facile ad reponere et ponere, humidum-probationem, ip68.
● Replaceable altilium camera consilio.
● capere firmum NB \ Lora Internet signum transmissione technology.
● Oratio aquae consummatio secundum ad 1l, 10L, 100l.
● Material: ferrum, plastic, aes, immaculatam.
● provisum est plumbum sigillum et pulvis-probationem operimentum.
● Climate et EMC PDF B \ o, E1.
II. Electronic parameter
| Datacomms | Current Static | Report | Operating frequency | PRAECIPIO | Recipero |
| Lora | 25μa | Magnetica | 470-510MHz | ≤20dbm | -136 1dbm |
| Nb | 15μa | Magnetica | B1, B2, B5, B8, NB-Lot | ≤23dbm | -131 1dbm |

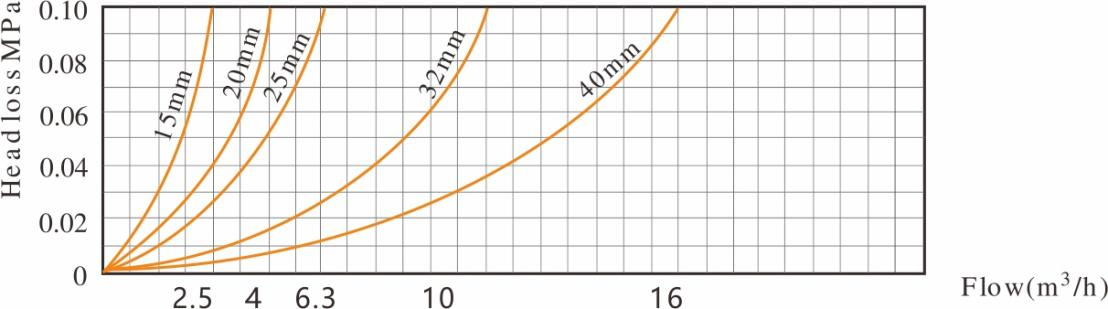

III. Caput damnum curva

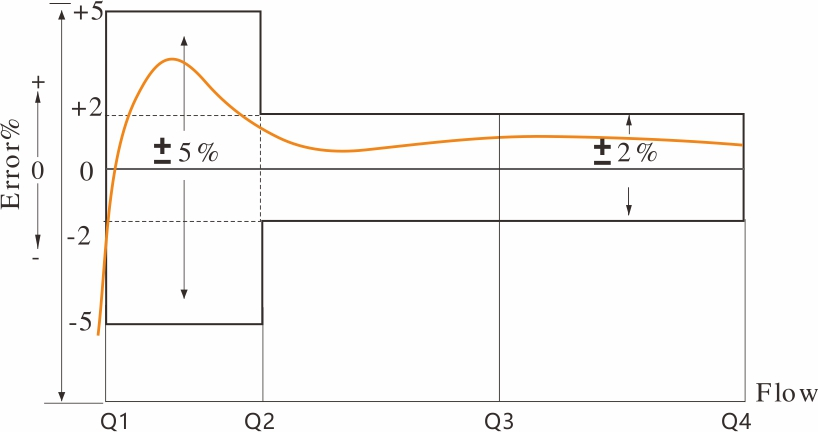

IV. ERROR curvae

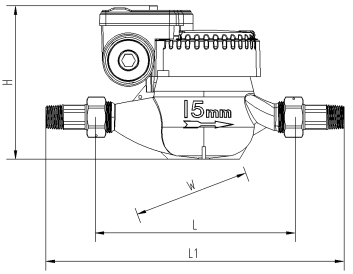

V. Installation dimensionem
| Item non | LXSW-XV | Lxsw-XX | LXSW-XXV | |
| L1 | mm | 260 | 295/300 | 346 |
| L | mm | 165 | 190/195 | 225 |
| H | mm | 130/140 | 130/140 | 140 |
| W | mm | 100 | 100 | 100 |
| Filum | D (mm) | G3 / IV " | G1 " | G1 1/4 " |
| d (mm) | R1 / II | R3 / IV | R1 | |
| Pondus | et unionskg |
|
|
|
| sine unionibus (kg) | 1.3 | 1.5 | 2.0 | |
VI. Main technica parametri
| Model Number | LXSW, XV | Lxsw-XX | LXSW-XXV |
|
| |||||
| Nominis diameter (DN) [mm] | 15 | 20 | 25 | 32 | 40 | |||||
| Ratio Q3 / Q1 | R80 | R100 | R80 | R100 | R80 | R100 | R80 | R100 | R80 | R100 |
| ONERO fluxus rate (Q4) [M³ / h] | 3.125 | 3.125 | 5 | 5 | 7.875 | 7.875 | 12.5 | 12.5 | 20 | 20 |
| Permanent fluxus rate (Q3) [M³ / h] | 2.5 | 2.5 | 4 | 4 | 6.3 | 6.3 | 10 | 10 | 16 | 16 |
| Transitional fluxus rate (Q2) [M³ / h] | 0.05 | 0.04 | 0.08 | 0.064 | 0.126 | 0.1 | 0.2 | 0.16 | 0.32 | 0.256 |
| Minimum fluxus rate (Q1) [M³ / h] | 0.032 | 0.025 | 0.05 | 0.04 | 0.08 | 0.063 | 0.125 | 0.1 | 0.2 | 0.16 |
| Genus accuracy | 2 | |||||||||
| Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι) | ± V% | |||||||||
| Maximum permissibilis error ad superius fluunt rate zonam (mpeμ) | ± II% ad aquam habens temperatus ≤30 ℃ | |||||||||
| Genus temperatus | T30, T50 | |||||||||
| Aqua pressura classes | Map XVI | |||||||||
| Pressura-damnum classes | △ P63 | |||||||||
| Significat range [M³] | XCIX CMXCIX | |||||||||
| Resolution de significans fabrica [M³] | 0.00005 | |||||||||
| Flue profile sensum classes | U10 D5 | |||||||||
| Orientatio limitation | Horizontal | |||||||||
