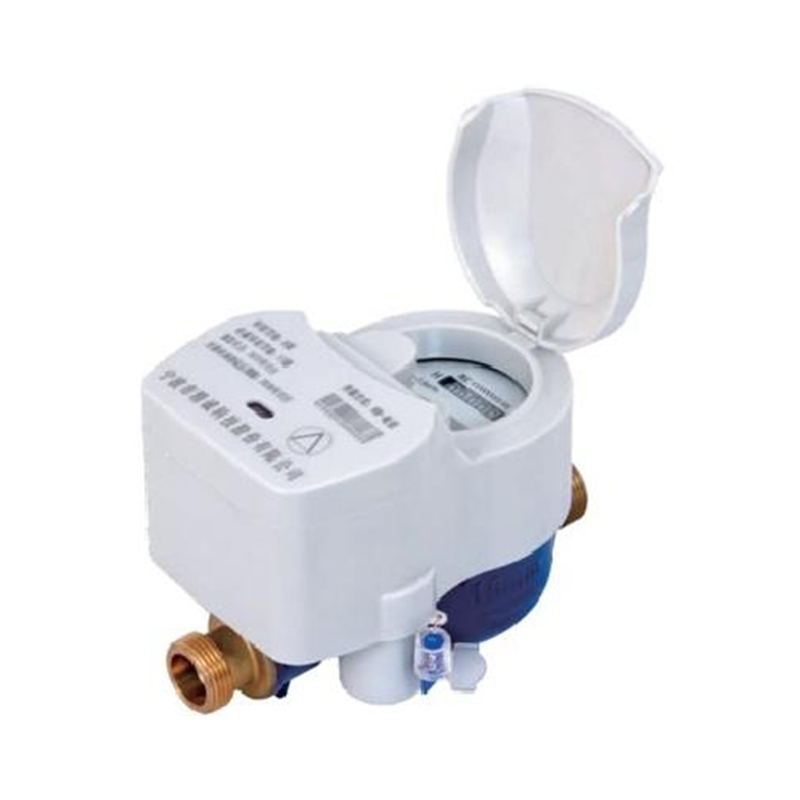

Wireless remotis infectum genus semi-liquida signati aqua meter cum pila valvae

In domo / Productio / Wireless remotis aqua meter / Wireless remotis infectum genus semi-liquida signati aqua meter cum pila valvae
Wireless remotis infectum genus semi-liquida signati aqua meter cum pila valvae
  • Wireless remotis infectum genus semi-liquida signati aqua meter cum pila valvae

Km01-05

Wireless remotis infectum genus semi-liquida signati aqua meter cum pila valvae

Haec series products sunt wireless remotis aqua metris quod separat mechanicus pars intelligentes moduli omnino et upload aquam consummatio per NB \ Lora Internet. Terminatio colligit aqua meter notitia, mittit notitia ad prope basi statione per aedificatum, in NB Module, pendit data directe ad IOT Platform per NB-IOT Platform.

Contact UsWireless remotis infectum genus semi-liquida signati aqua meter cum pila valvae
PREV: Wireless remotis arida genus aqua meter cum signati valvae NEXT:Verticalis wireless remotis aqua meter pila valvae
Wireless remotis infectum genus semi-liquida signati aqua meter cum pila valvae

Descriptio

I. Features

● Multi-Jet Vane Rota.
● infectum type subcriptio, princeps sensibilitatem, glycerin, signati dial ensures diu terminus lectio.
● split genus, separatum signantes structuram, facile ad reponere et ponere, humidum-probationem, ip68.
● Replaceable altilium camera consilio.
● capere firmum NB \ Lora Internet signum transmissione technology.
● Oratio aquae consummatio secundum ad 1l, 10L, 100l.
● Material: ferrum, plastic, aes, immaculatam.
● provisum est plumbum sigillum et pulvis-probationem operimentum.
● Climate et EMC PDF B \ o, E1.

2. Electronic parameter

Datacomms

Current Static

Report

Operating frequency

PRAECIPIO

Recipero

Lora

20μa

Hall \ passibat

470-510MHz

≤20dbm

-136 1dbm

Nb

10μa

Hall \ passibat

B1, B2, B5, B8, NB-Lot

≤23dbm

-131 1dbm

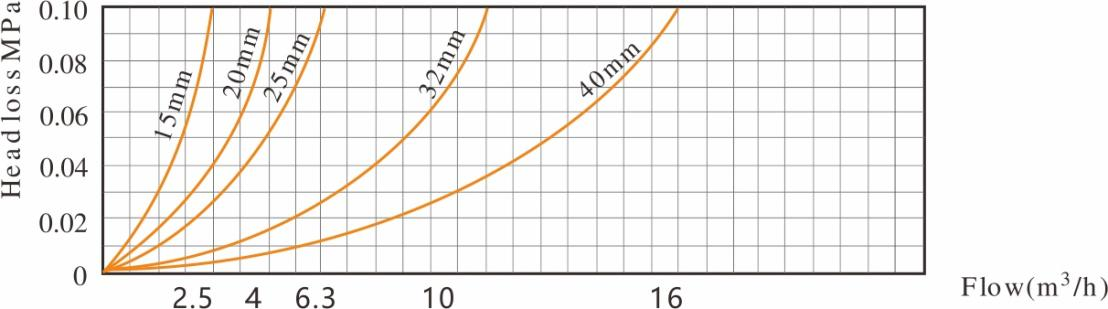

III. Caput damnum curva

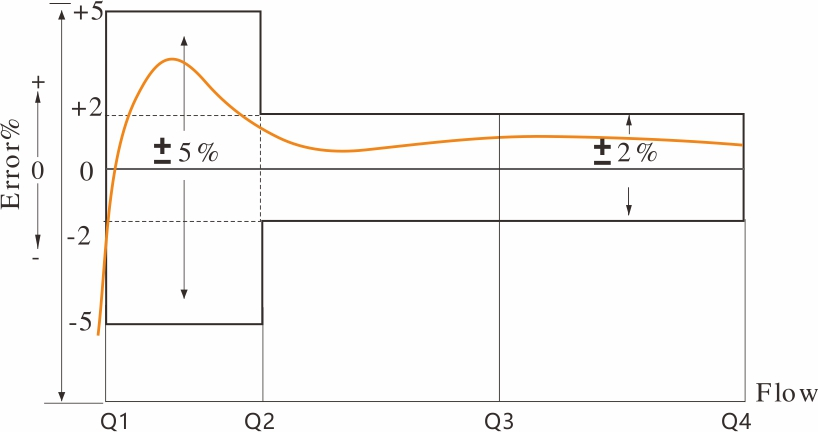

IV. ERROR curvae


V. Installation dimensionem

Item non

LXSGW, XV

LxsgW, XX

LxsgW-XXV

L1

mm

260

300

345

L

mm

165

193

225

H

mm

120

120

120

W

mm

102

102

102

Nexus

Filum

D (mm)

G3 / IV "

G1 "

G1 1/4 "

d (mm)

R1 / II

R3 / IV

R1

Pondus

Cum Unionibus (kg)

sine unionibus (kg)

1.4

1.6

1.8


VI. Main technica parametri

Model Number

LXSGW, XV

LxsgW, XX

LxsgW-XXV

Nominis diameter (DN) [mm]

15

20

25

32

40

Ratio Q3 / Q1

R80

R100

R160

R80

R100

R160

R80

R100

R160

R80

R100

R160

R80

R100

R160

ONERO fluxus rate (Q4) [M³ / h]

3.125

3.125

3.125

5

5

5

7.875

7.875

7.875

12.5

12.5

12.5

20

20

20

Permanent fluxus rate (Q3) [M³ / h]

2.5

2.5

2.5

4

4

4

6.3

6.3

6.3

10

10

10

16

16

16

Transitional fluxus rate (Q2) [M³ / h]

0.05

0.04

0.025

0.08

0.064

0.04

0.126

0.1

0.063

0.2

0.16

0.1

0.32

0.256

0.16

Minimum fluxus rate (Q1) [M³ / h]

0.032

0.025

0.015

0.05

0.04

0.025

0.08

0.063

0.039375

0.125

0.1

0.0625

0.2

0.16

0.1

Genus accuracy

2

Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι)

± V%

Maximum permissibilis error ad superius fluunt rate zonam (mpeμ)

± II% ad aquam habens temperatus ≤30 ℃
± III% ad aquam habens temperatus> XXX ℃

Genus temperatus

T30, T50

Aqua pressura classes

Map XVI

Pressura-damnum classes

△ P63

Significat range [M³]

XCIX CMXCIX

Resolution de significans fabrica [M³]

0.00005

Flue profile sensum classes

U10 D5

Orientatio limitation

Horizontal
