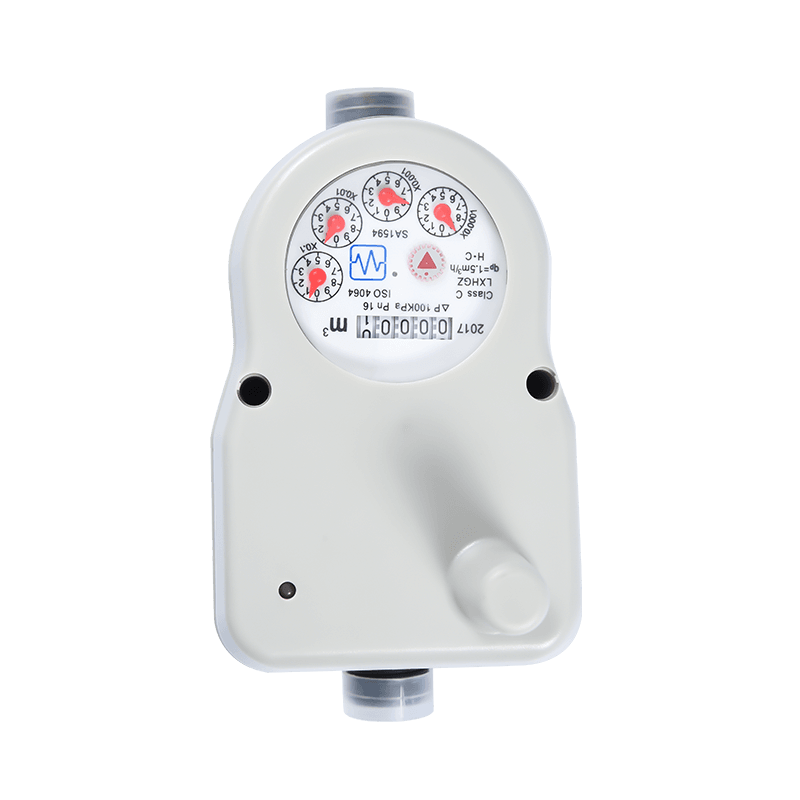

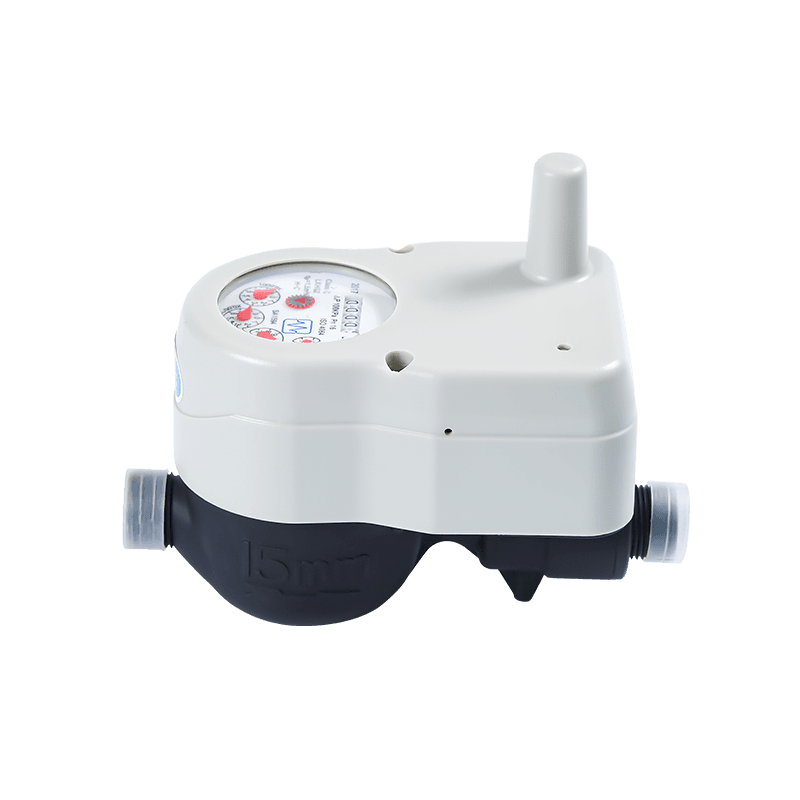

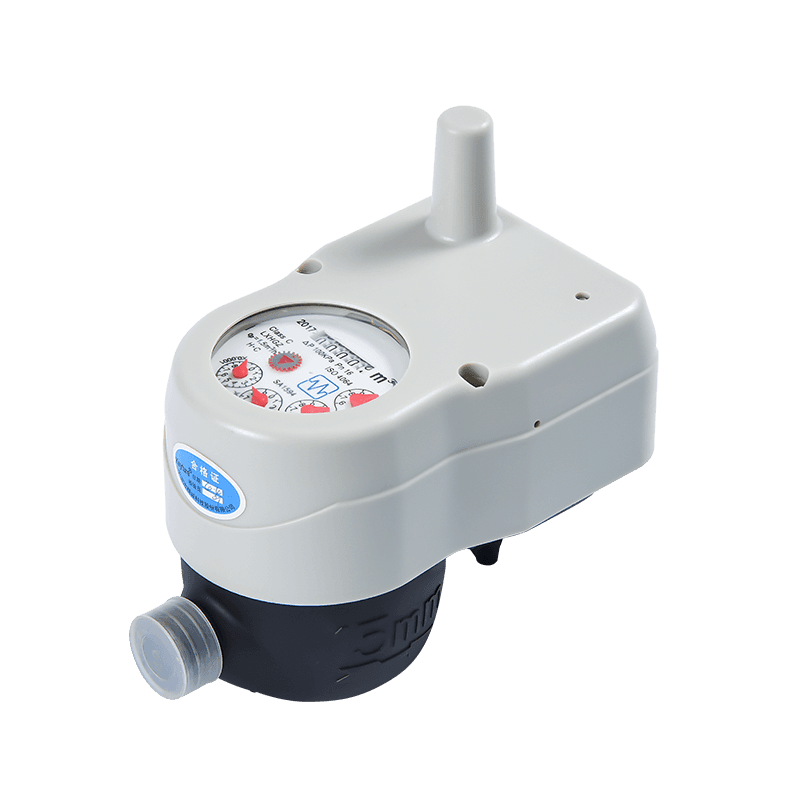

Plastic DN15 wireless remotis aqua meter pila valvae

In domo / Productio / Wireless remotis aqua meter / Plastic DN15 wireless remotis aqua meter pila valvae
Plastic DN15 wireless remotis aqua meter pila valvae
  • Plastic DN15 wireless remotis aqua meter pila valvae
  • Plastic DN15 wireless remotis aqua meter pila valvae
  • Plastic DN15 wireless remotis aqua meter pila valvae
  • Plastic DN15 wireless remotis aqua meter pila valvae

Km01-09

Plastic DN15 wireless remotis aqua meter pila valvae

Haec series products sunt wireless remotis aqua metris quod separate mechanicus pars ex intelligentes moduli omnino et upload aquam consummatio per NB \ Lora Internet. Firmum et certa signum. Proprietary Ultra-Low Power consummatio Technology, Pugna Vita> VI years

Contact UsPlastic DN15 wireless remotis aqua meter pila valvae
PREV: Wireless remotis transmissione signatum aqua meter pila valvae NEXT:Horizontalis Dn20 wireless remotis aqua meter pila valvae
Plastic DN15 wireless remotis aqua meter pila valvae

Descriptio

I. Features

  • Multi-jet vane rota.
  • Arida-type subcriptio, princeps sensibility, glycerin, signati dial ensures diu terminus lectio.
  • Split type, separatum signantes structuram, facile ad reponere et ponere, humidum-probationem, ip68.
  • Replaceable altilium camera consilio.
  • NB adopt firmum \ Lora Internet signum Transmission Technology
  • Oratio aqua consummatio secundum ad 1, 10L, 100l.
  • Material, ferrum, plastic, aes, immaculatam
  • Dum ducere sigillum et pulvis-probationem operimentum
  • Clima et EMC PDF B \ o, E1

II. Electronic parameter

Datacomms Current Static Report Operating frequency PRAECIPIO Recipero
Lora 20 μa Hall \ passibat 470-510MHz ≤ 20DBM -136 1 DBM
Nb 10 μa Hall \ passibat B1, B2, B5, B8, NB-Lot ≤ 23dbm -131 1 DBM

III. Caput damnum curva

IV. ERROR curvae

V. Installation dimensionem

Item non LXSGW, XV LxsgW, XX
L1 mm 260 270
L mm 185 190
H mm 165 165
W mm 102 102
Filum D (mm) G3 / IV " G1 "
d (mm) R1 / II R3 / IV
sine unionibus
kg 		1.4kg 1.6kg

VI. Main technica parametri

Model Number LXSGW, XV LxsgW, XX
Nominis diameter (DN) [mm] 15 20 25 32 40
Ratio Q3 / Q1 R80 R100 R160 R80 R100 R160 R80 R100 R160 R80 R100 R160 R80 R100 R160
ONERO fluxus rate (Q4) [M³ / h] 3.125 3.125 3.125 5 5 5 7.875 7.875 7.875 12.5 12.5 12.5 20 20 20
Permanent fluxus rate (Q3) [M³ / h] 2.5 2.5 2.5 4 4 4 6.3 6.3 6.3 10 10 10 16 16 16
Transitional fluxus rate (Q2) [M³ / h] 0.05 0.04 0.025 0.08 0.064 0.04 0.126 0.1 0.063 0.2 0.16 0.1 0.32 0.256 0.16
Minimum fluxus rate (Q1) [M³ / h] 0.032 0.025 0.015 0.05 0.04 0.025 0.08 0.063 0.039375 0.125 0.1 0.0625 0.2 0.16 0.1
Genus accuracy 2
Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι) ± V%
Maximum permissibilis error ad superius fluunt rate zonam (mpeμ) ± II% ad aquam habens temperatus ≤30 ℃
± III% ad aquam habens temperatus> XXX ℃
Genus temperatus T30, T50
Aqua pressura classes Map XVI
Pressura-damnum classes △ P63
Significat range [M³] XCIX CMXCIX
Resolutio 0.00005
Significans fabrica [M³]
Flue profile sensum classes U10 D5
Orientatio limitation Horizontal
