KM01-19

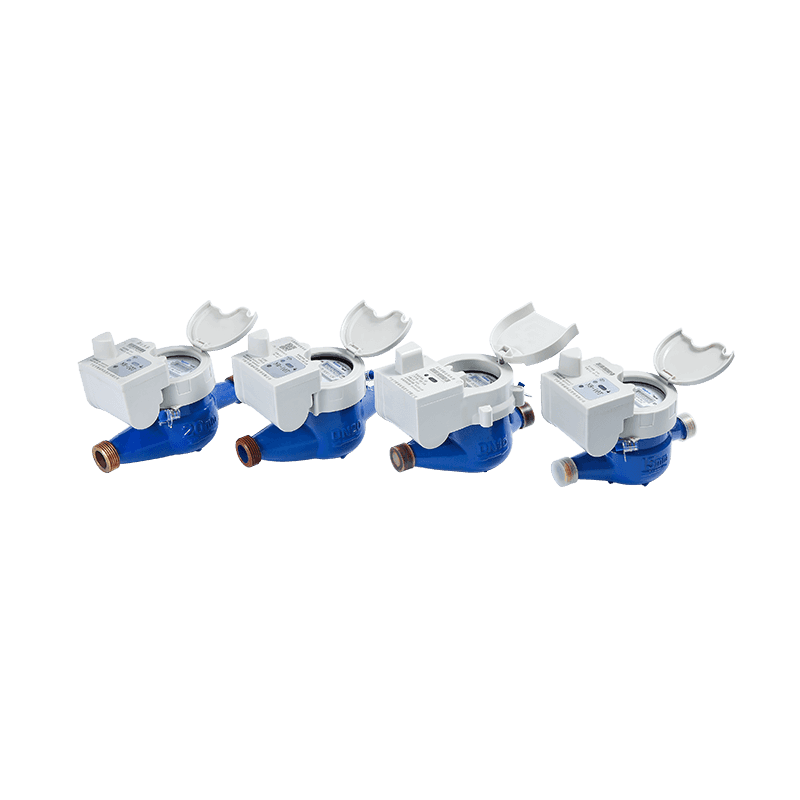

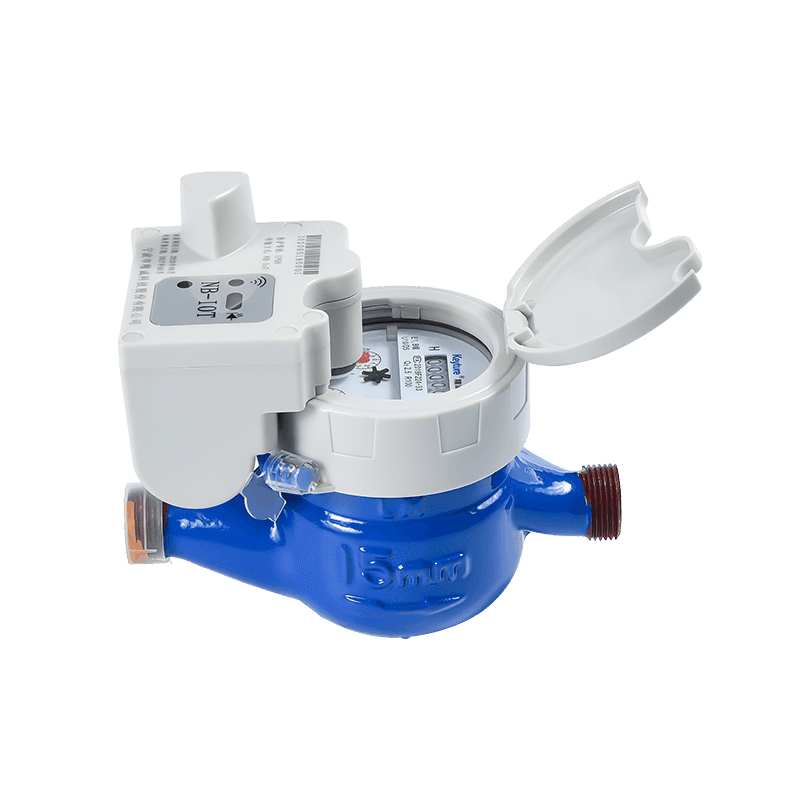

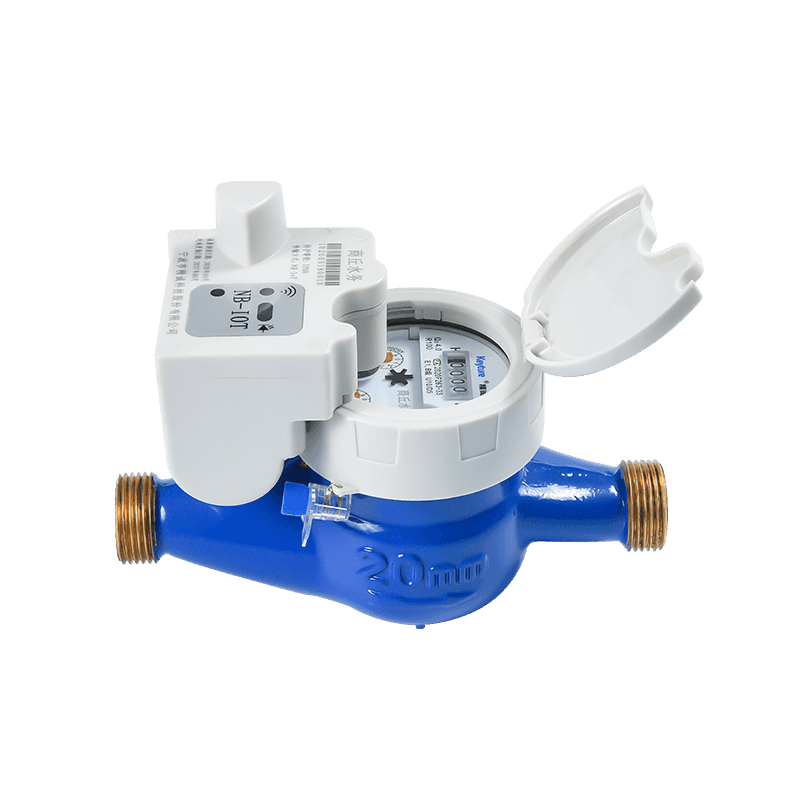

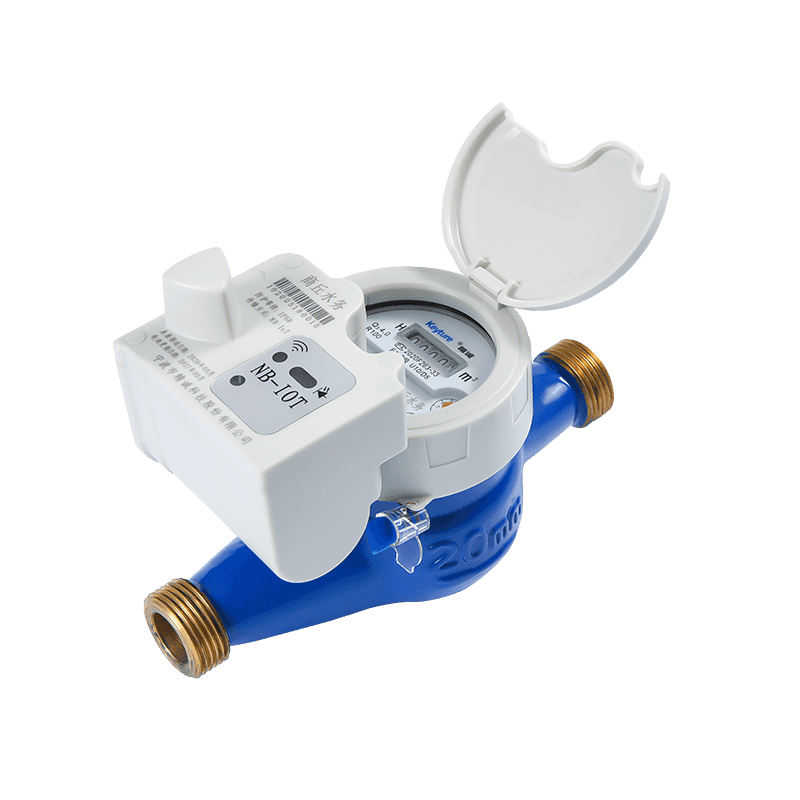

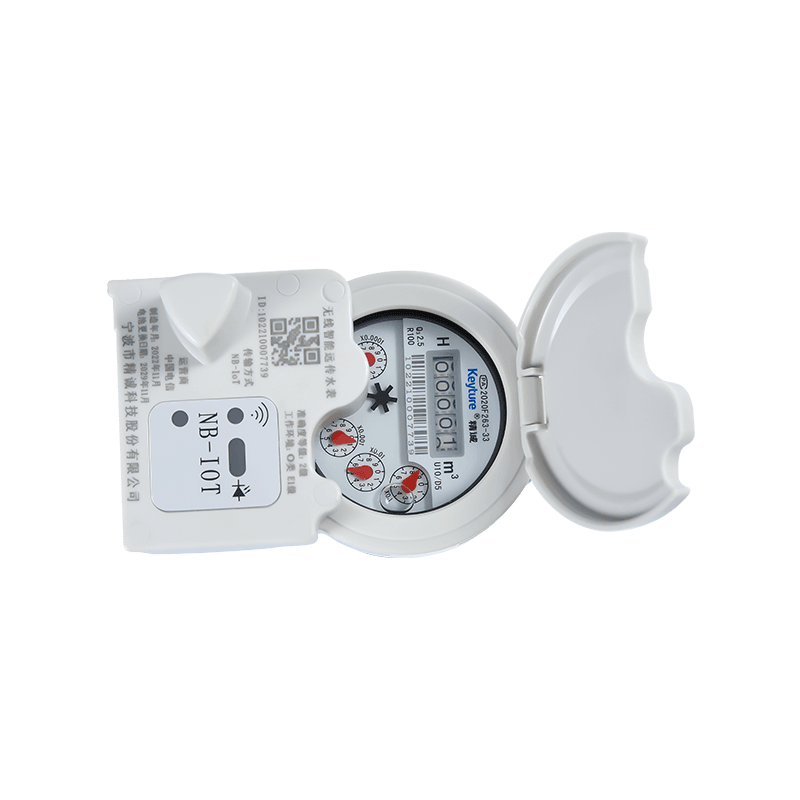

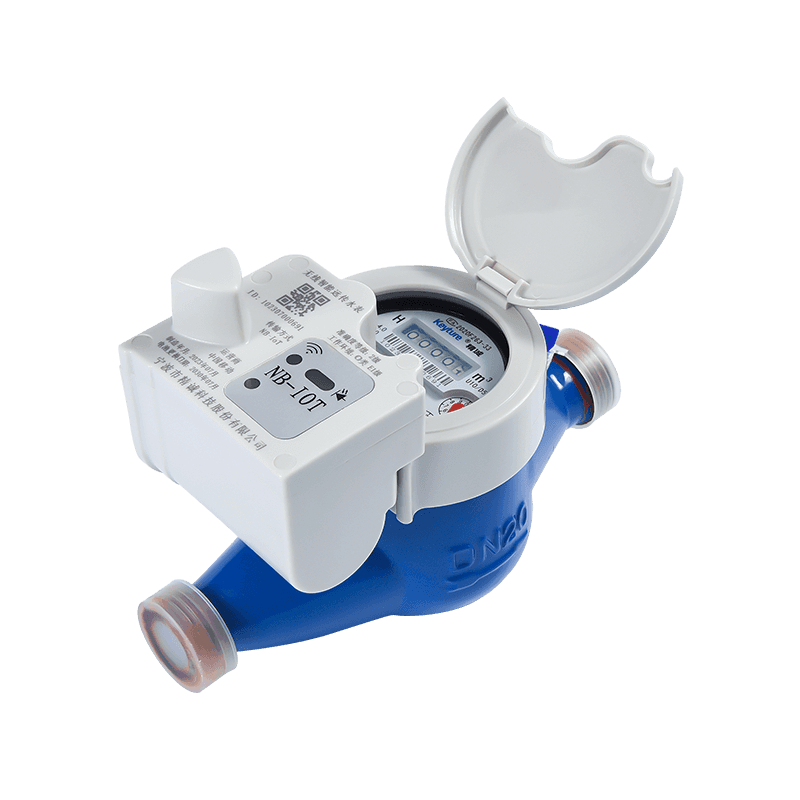

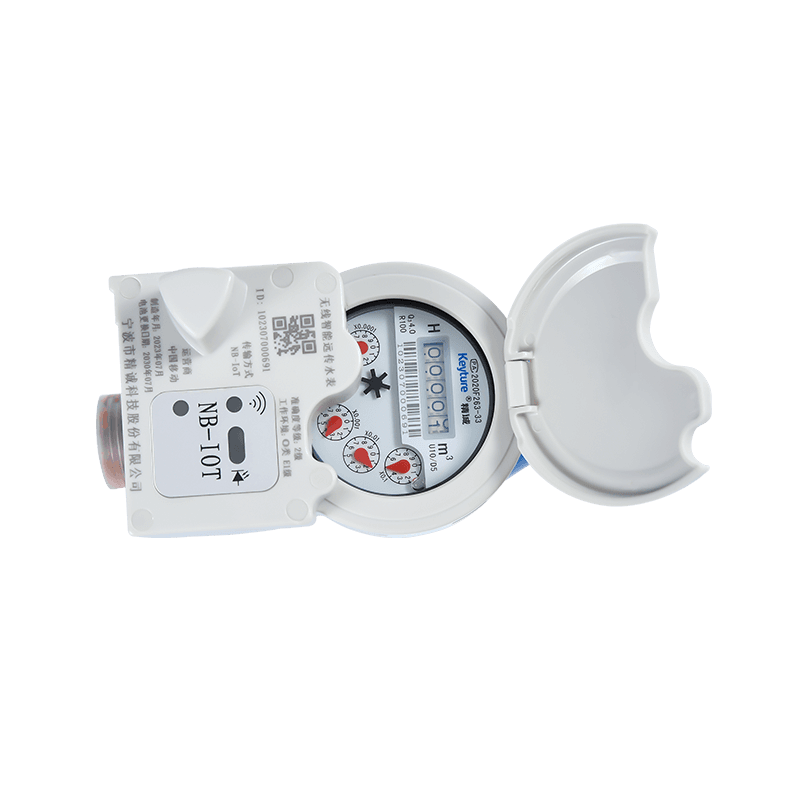

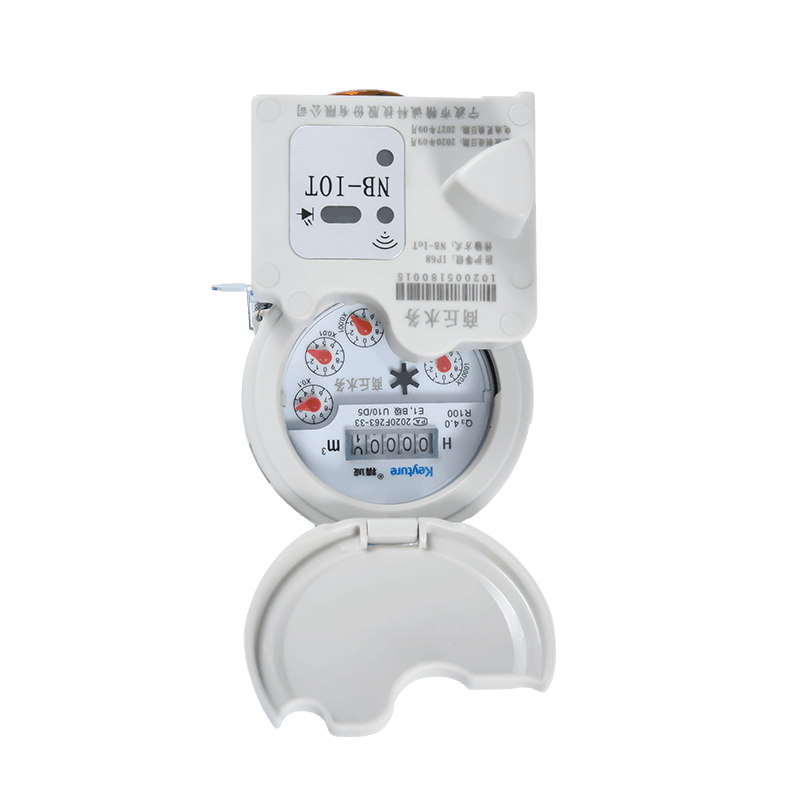

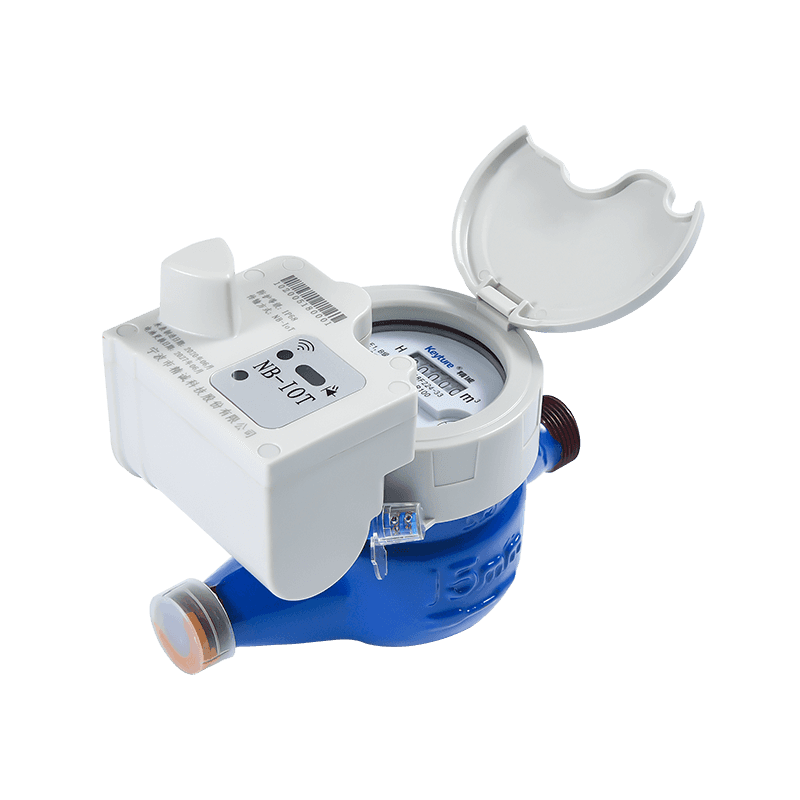

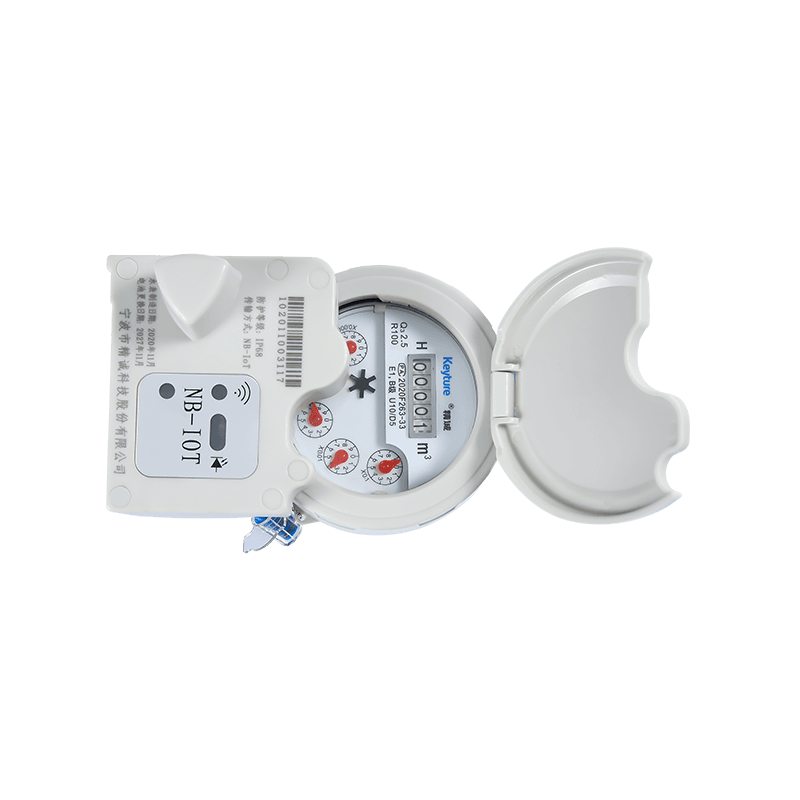

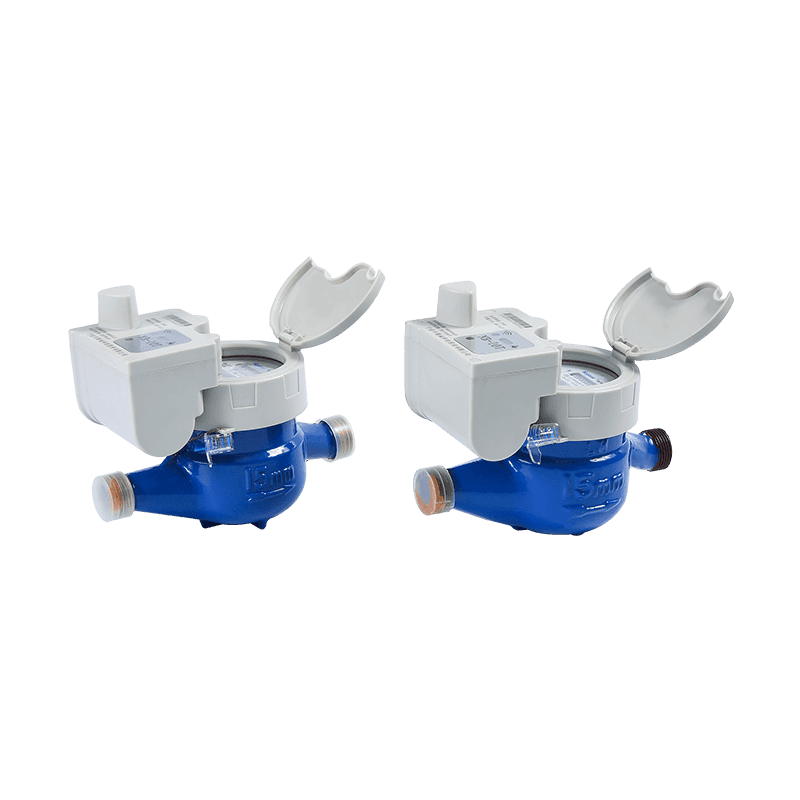

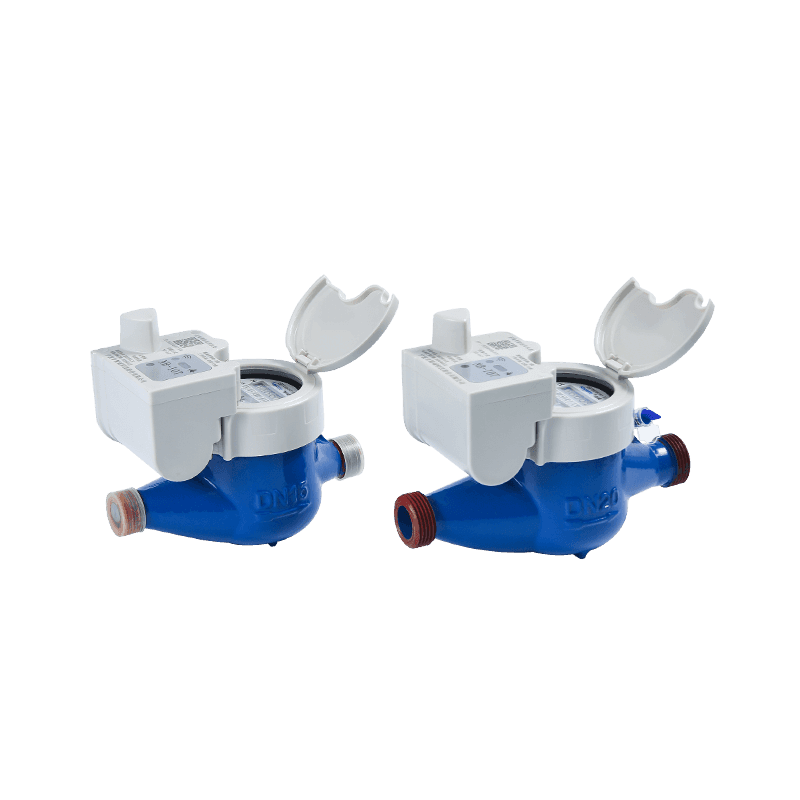

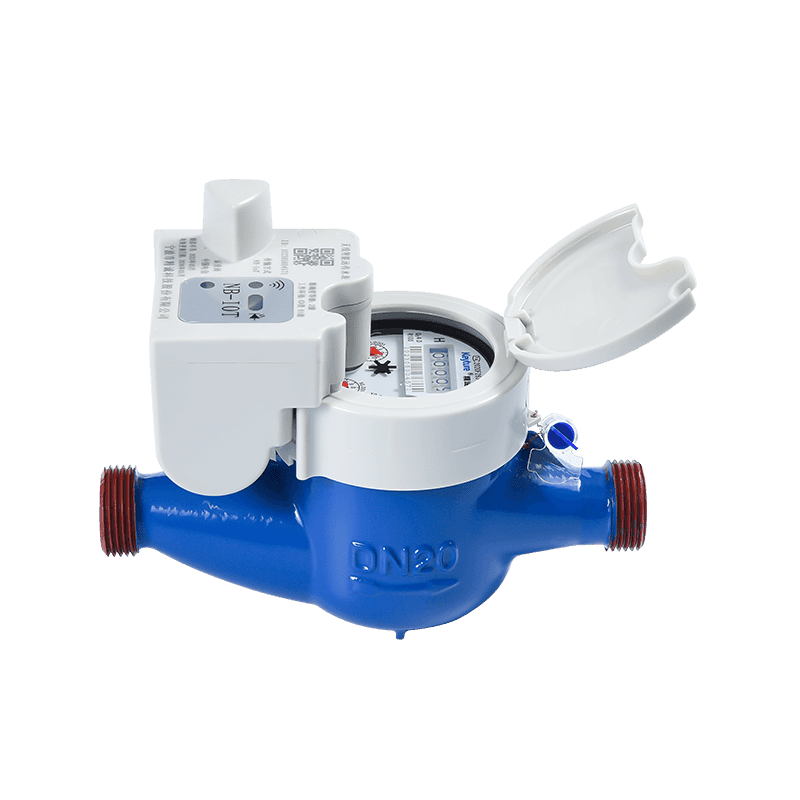

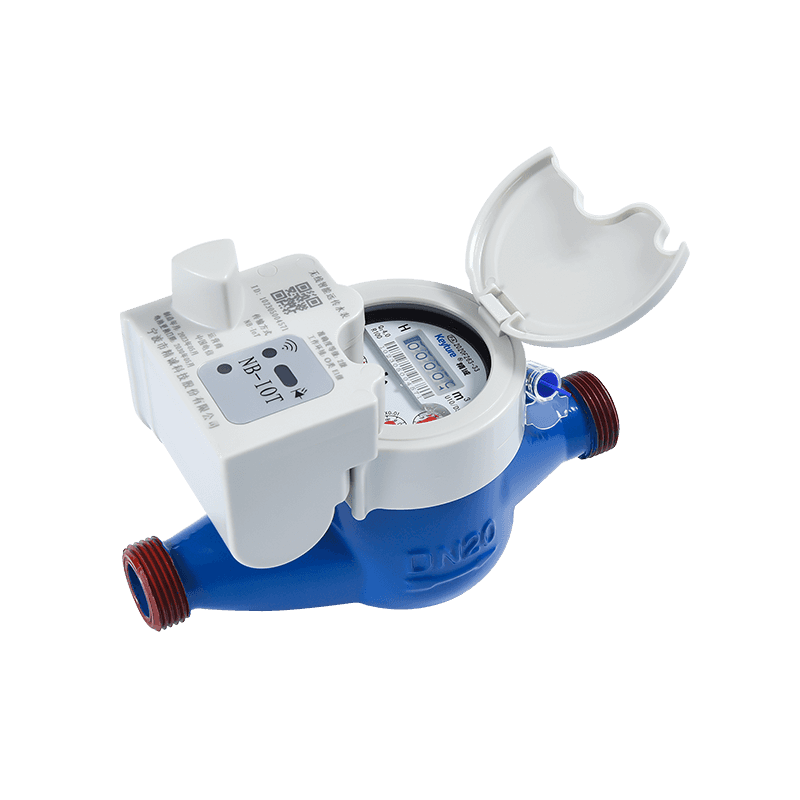

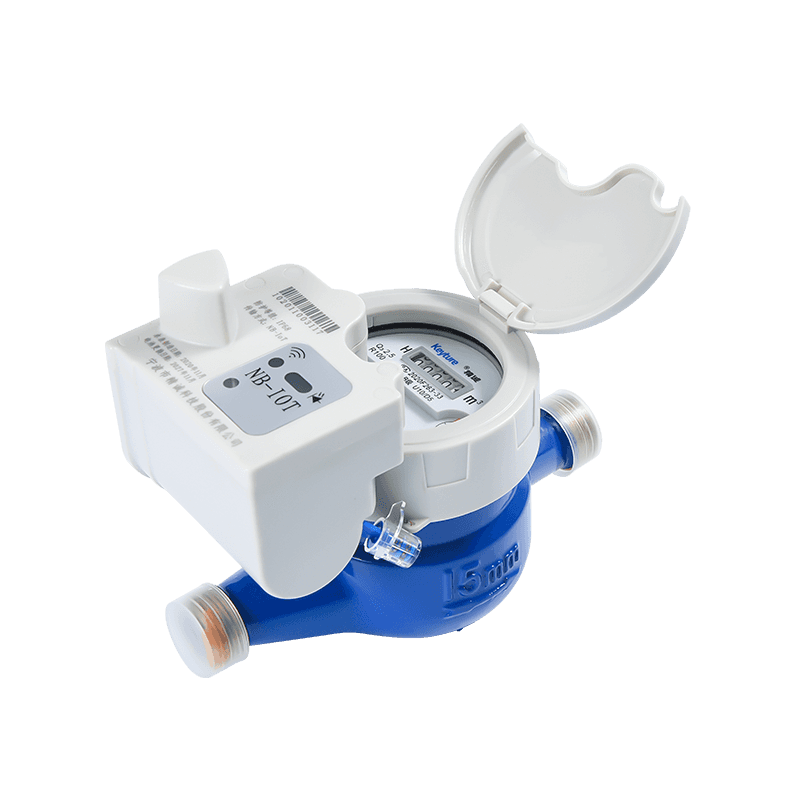

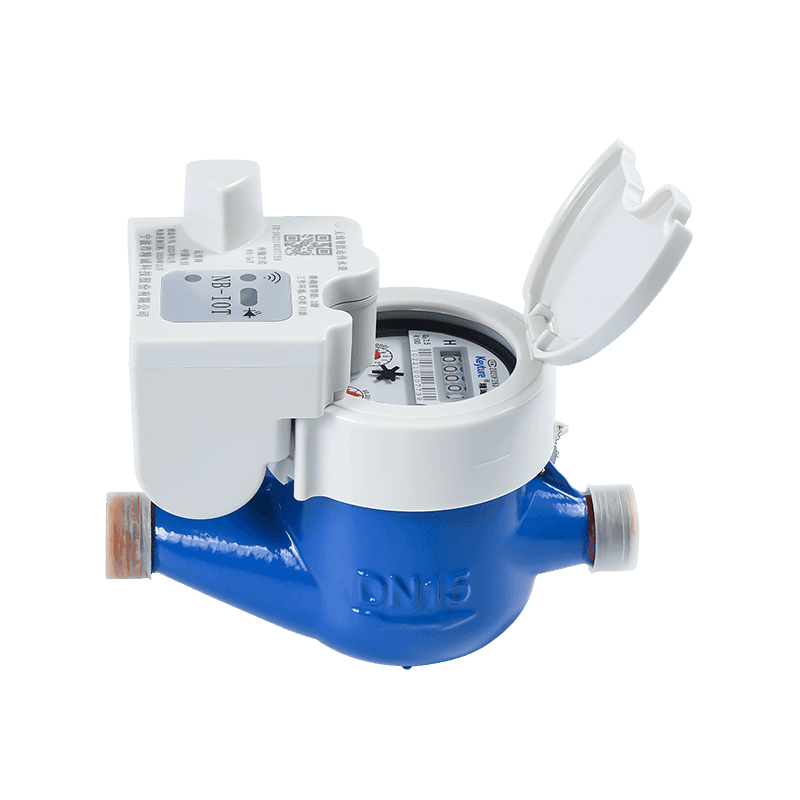

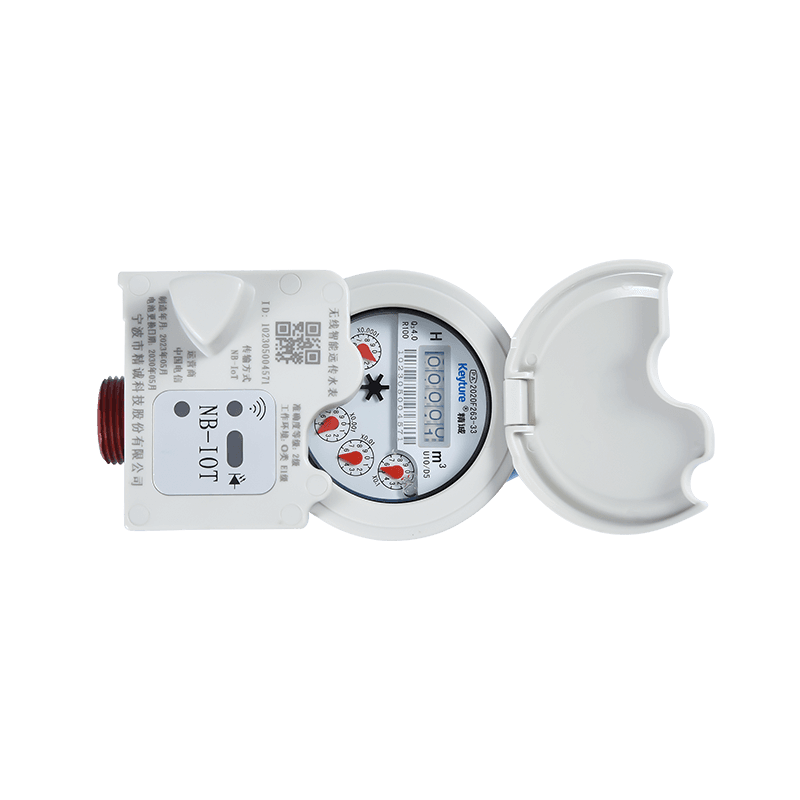

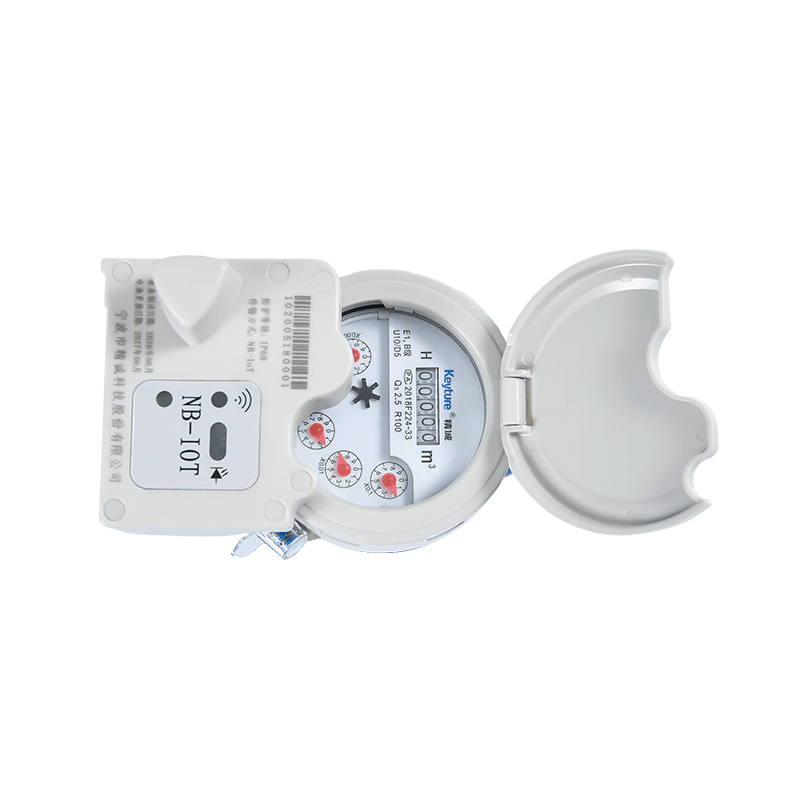

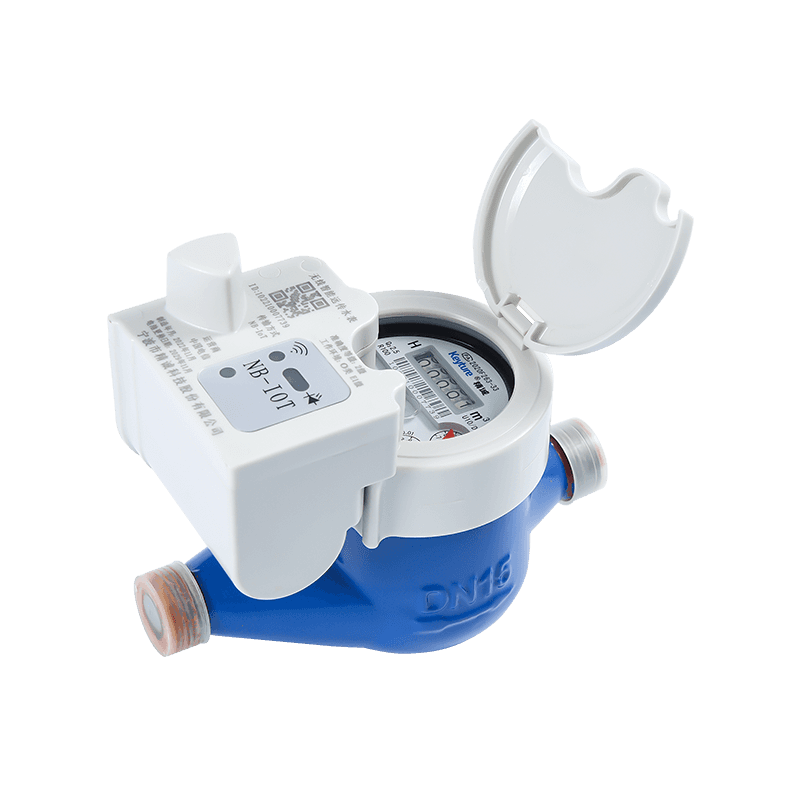

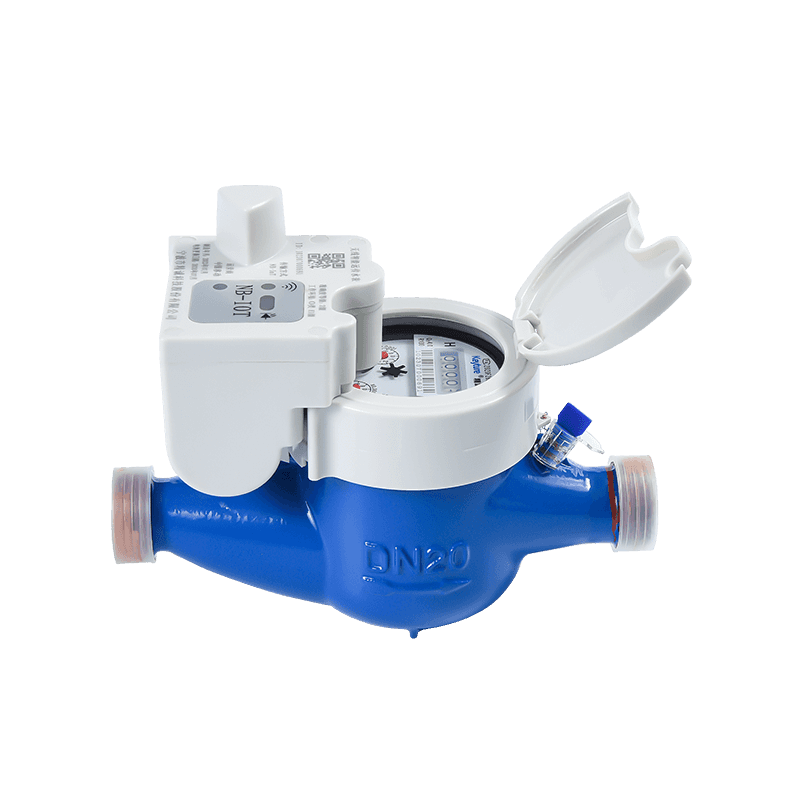

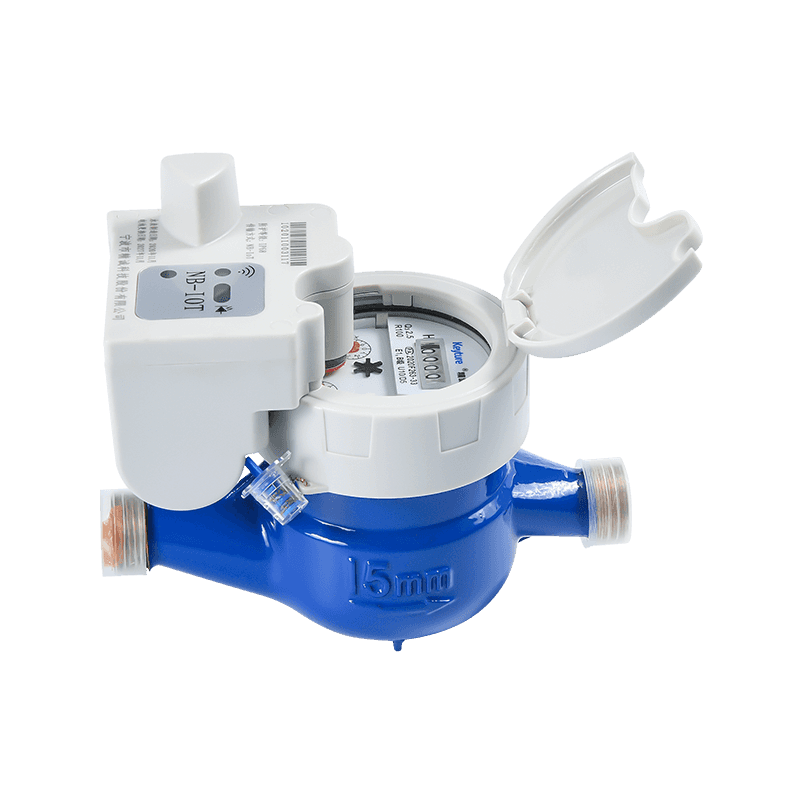

Haec series products sunt wireless remotis aqua metris quod separate mechanicus pars ex intelligentes moduli omnino et upload aquam consummatio per NB \ Lora Internet. NB-iot dolor aqua meter praebet notitia de cotidiana aqua consummatio. Automatic Meter Lectio. Reductionem in aqua consummatio et sumptus. Redigendum proprietas damnum. Network Operational Insights.
Descriptio
I. Features
II. Electronic parameter
| Datacomms | Current Static | Report | Operating frequency | PRAECIPIO | Recipero |
| Lora | 20 μa | Hall \ passibat | 470-510MHz | ≤ 20DBM | -136 1 DBM |
| Nb | 10 μa | Hall \ passibat | B1, B2, B5, B8, NB-Lot | ≤ 23dbm | -131 1 DBM |
III. Caput damnum curva
IV. ERROR curvae
V. Installation dimensionem
| Item non | LXSGW, XV | LxsgW, XX | |
| L1 | mm | 260 | 295 |
| L | mm | 165 | 190 |
| H | mm | 150 | 150 |
| W | mm | 90 | 90 |
| Filum | D (mm) | G3 / IV " | G1 " |
| d (mm) | R1 / II | R3 / IV | |
| sine unionibus kg | 1.3kg | 1.5kg | |
VI. Main technica parametri
| Model Number | LXSGW, XV | LxsgW, XX | |||||||||||||
| Nominis diameter (DN) [mm] | 15 | 20 | 25 | 32 | 40 | ||||||||||
| Ratio Q3 / Q1 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 |
| ONERO fluxus rate (Q4) [M³ / h] | 3.125 | 3.125 | 3.125 | 5 | 5 | 5 | 7.875 | 7.875 | 7.875 | 12.5 | 12.5 | 12.5 | 20 | 20 | 20 |
| Permanent fluxus rate (Q3) [M³ / h] | 2.5 | 2.5 | 2.5 | 4 | 4 | 4 | 6.3 | 6.3 | 6.3 | 10 | 10 | 10 | 16 | 16 | 16 |
| Transitional fluxus rate (Q2) [M³ / h] | 0.05 | 0.04 | 0.025 | 0.08 | 0.064 | 0.04 | 0.126 | 0.1 | 0.063 | 0.2 | 0.16 | 0.1 | 0.32 | 0.256 | 0.16 |
| Minimum fluxus rate (Q1) [M³ / h] | 0.032 | 0.025 | 0.015 | 0.05 | 0.04 | 0.025 | 0.08 | 0.063 | 0.039375 | 0.125 | 0.1 | 0.0625 | 0.2 | 0.16 | 0.1 |
| Genus accuracy | 2 | ||||||||||||||
| Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι) | ± V% | ||||||||||||||
| Maximum permissibilis error ad superius fluunt rate zonam (mpeμ) | ± II% ad aquam habens temperatus ≤30 ℃ ± III% ad aquam habens temperatus> XXX ℃ | ||||||||||||||
| Genus temperatus | T30, T50 | ||||||||||||||
| Aqua pressura classes | Map XVI | ||||||||||||||
| Pressura-damnum classes | △ P63 | ||||||||||||||
| Significat range [M³] | XCIX CMXCIX | ||||||||||||||
| Resolutio | 0.00005 | ||||||||||||||
| Significans fabrica [M³] | |||||||||||||||
| Flue profile sensum classes | U10 D5 | ||||||||||||||
| Orientatio limitation | Horizontal | ||||||||||||||
