Vertical arida genus wired remotis plastic corpus aqua meter cum valvae

In domo / Productio / Wired remotis aqua meter / Vertical arida genus wired remotis plastic corpus aqua meter cum valvae

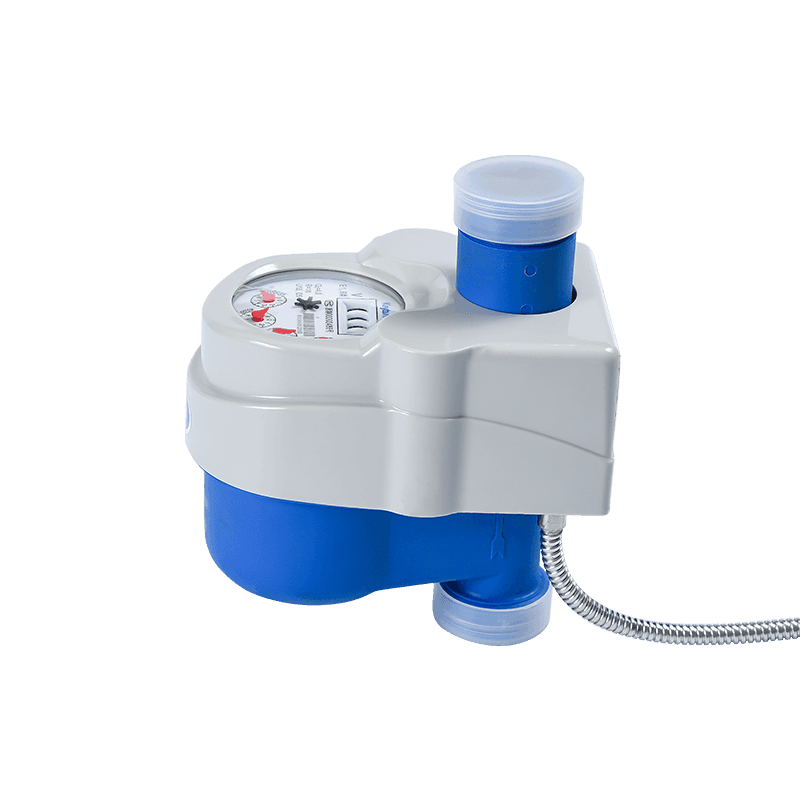

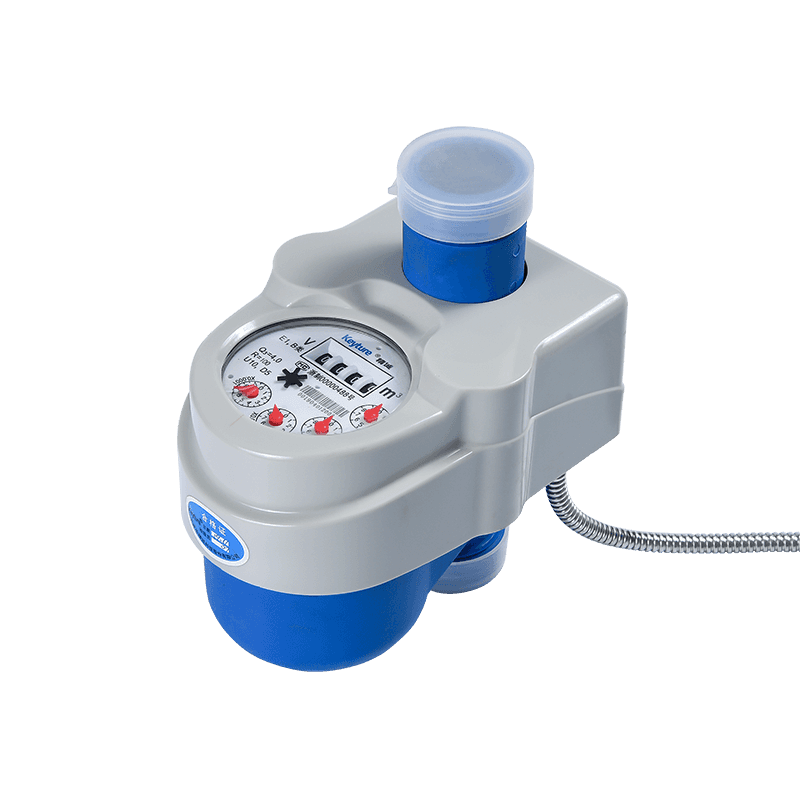

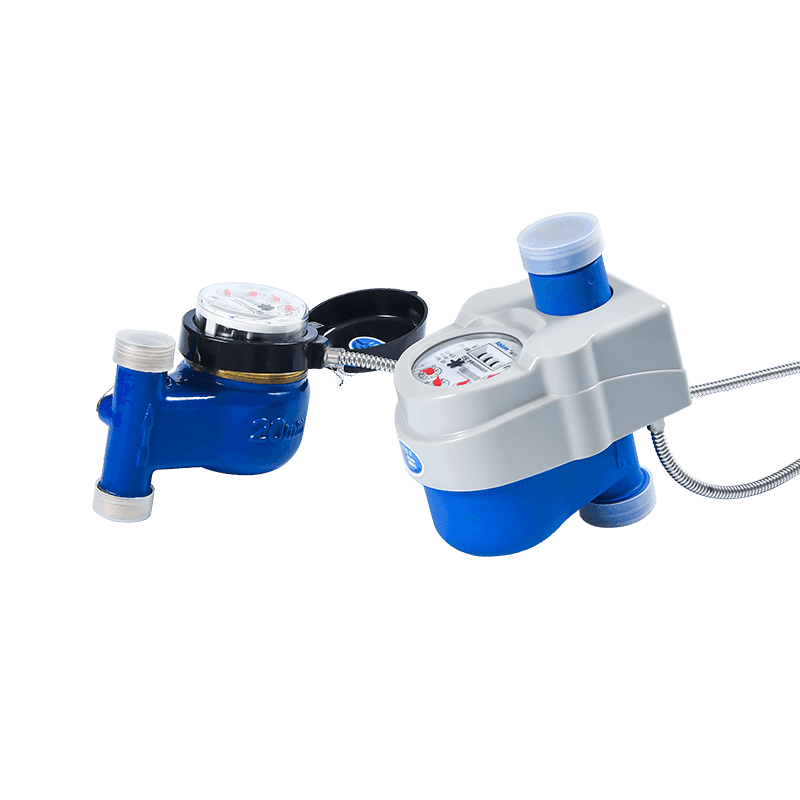

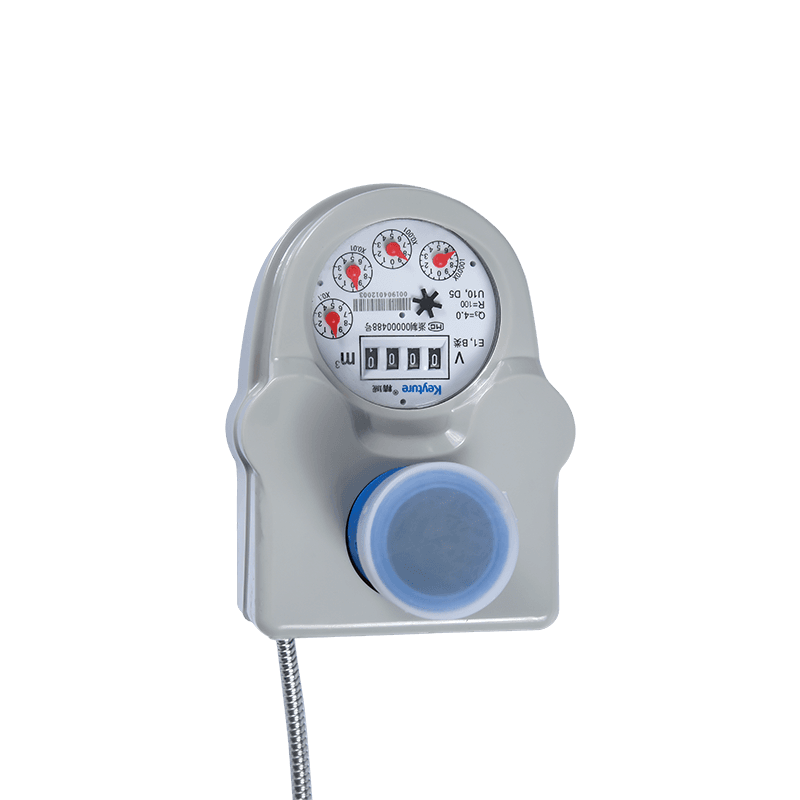

Vertical arida genus wired remotis plastic corpus aqua meter cum valvae
  • Vertical arida genus wired remotis plastic corpus aqua meter cum valvae
  • Vertical arida genus wired remotis plastic corpus aqua meter cum valvae
  • Vertical arida genus wired remotis plastic corpus aqua meter cum valvae
  • Vertical arida genus wired remotis plastic corpus aqua meter cum valvae

Km02-05

Vertical arida genus wired remotis plastic corpus aqua meter cum valvae

Haec series products adoptare photoelectric recta Lectio module legere aqua consummatio data et upload per speciale filum. Totam ratio ex aqua meter collector et administratione centrum. Plastic corpus levius et facile install valvae control.

Contact UsVertical arida genus wired remotis plastic corpus aqua meter cum valvae
PREV: Arido genus wired remotis aqua meter pila valvae NEXT:Arido genus wired remotis aqua meter (pulsum)
Vertical arida genus wired remotis plastic corpus aqua meter cum valvae

Descriptio

I. Features

● Multi-jet vane rota, separatum signantes structuram, facile ad reponere et ponere.
● aridam type subcriptio, magnetica coegi, anti-magnetica intercessiones, anti-glacians, diu terminus lectio.
● Material: ferrum, plastic, aes, immaculatam.
● humorem, probationem, sol-probationem, anti-fluctuation, anti-stabilis, anti-magnetica, ip68.
● remotis valvae imperium est libitum.
● aqua consummatio potest legere vel memoriae realis-vicis.
● environment B, E1.
● nulla potentia copia nisi legendi aqua consummatio.
● Securus addere et ponere aquam metris et collectores.

2. Ars electronic

Voltage operantes

Opus temperatus

Current Working

Datacomms

DC9-15V (RS CDLXXXV) / DC24-36V (M-bus)

-10 ~ XLV ℃

≤9ma

Rs-CDLXXXV, M-bus

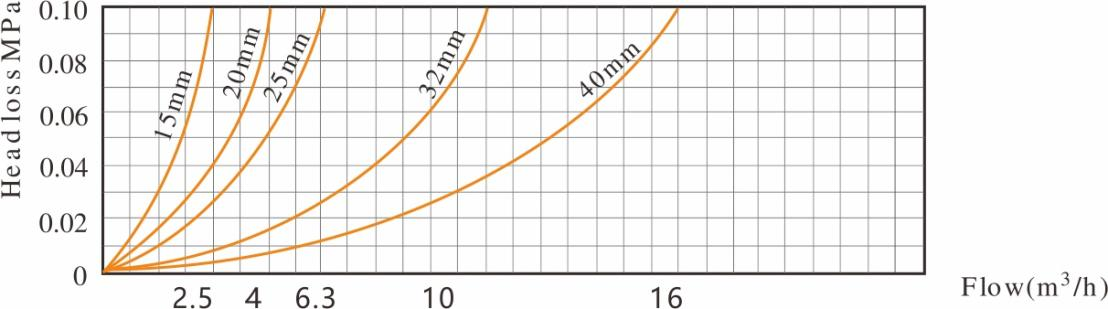

III. Caput damnum curva

IV. ERROR curvae


V. Installation dimensionem

Item non

Lxsgy, 20E

Lxsgy, 25e

L1

mm

260

260

295

354

373

L

mm

165

165

175

230

245

H

mm

118

150

150

115

155

W

mm

90

110

110

110

125

Filum

D (mm)

G3 / IV "

G1 "

G1 1/4 "

G1 1/2 "

G2 "

d (mm)

R1 / II

R3 / IV

R1

R1 1/4

R1 1/2

Pondus

Cum Unionibus (kg)

1.2

1.5

1.6

sine unionibus (kg)

VI. Main technica parametri

Model Number

Lxsgy, 20E

Lxsgy, 25e

Nominis diameter (DN) [mm]

15

20

25

32

40

Ratio Q3 / Q1

R80

R100

R160

R80

R100

R160

R80

R100

R160

R80

R100

R160

R80

R100

R160

ONERO fluxus rate (Q4) [M³ / h]

3.125

3.125

3.125

5

5

5

7.875

7.875

7.875

12.5

12.5

12.5

20

20

20

Permanent fluxus rate (Q3) [M³ / h]

2.5

2.5

2.5

4

4

4

6.3

6.3

6.3

10

10

10

16

16

16

Transitional fluxus rate (Q2) [M³ / h]

0.05

0.04

0.025

0.08

0.064

0.04

0.126

0.1

0.063

0.2

0.16

0.1

0.32

0.256

0.16

Minimum fluxus rate (Q1) [M³ / h]

0.032

0.025

0.015

0.05

0.04

0.025

0.08

0.063

0.039375

0.125

0.1

0.0625

0.2

0.16

0.1

Genus accuracy

2

Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι)

± V%

Maximum permissibilis error ad superius fluunt rate zonam (mpeμ)

± II% ad aquam habens temperatus ≤30 ℃
± III% ad aquam habens temperatus> XXX ℃

Genus temperatus

T30, T50

Aqua pressura classes

Map XVI

Pressura-damnum classes

△ P63

Significat range [M³]

XCIX CMXCIX

Resolution de significans fabrica [M³]

0.00005

Flue profile sensum classes

U10 D5

Orientatio limitation

Vertical
