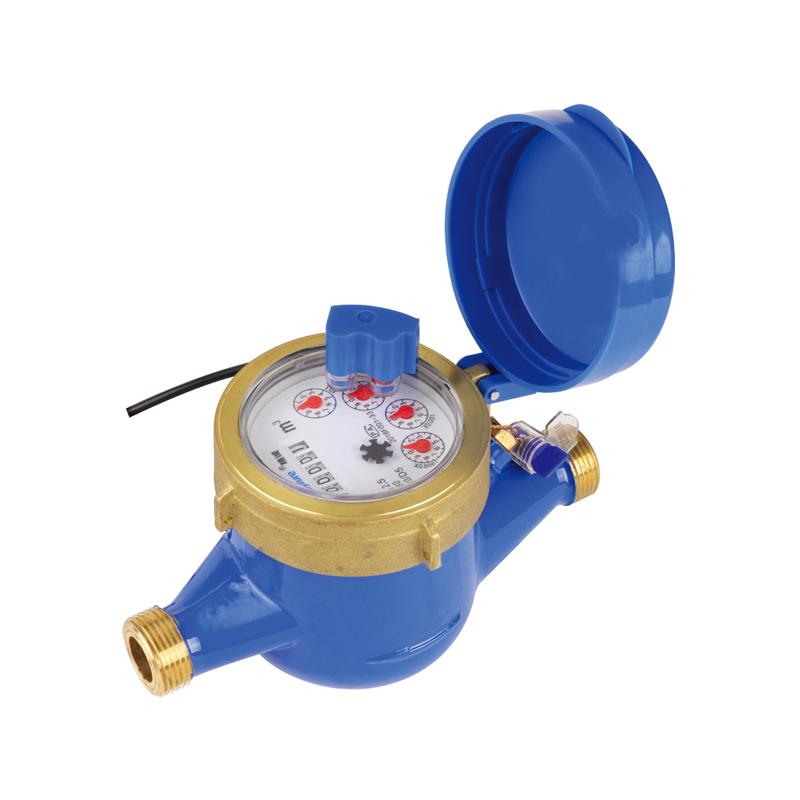

Km02-06
Haec series products adoptos pulsum modulus legere aqua consummatio data et upload eam per specialem filum. Totam ratio ex aqua meter, collector et administratione Center.
Descriptio
I. Features
● Multi-jet vane rota, separatum signantes structuram, facile ad reponere et ponere.
● aridam type subcriptio, magnetica coegi, anti-magnetica intercessiones, anti-glacians, diu terminus lectio.
● Material: ferrum, plastic, aes, immaculatam.
● humorem, probationem, sol-probationem, anti-fluctuation, anti-stabilis, anti-magnetica, ip68.
● aqua consummatio potest legere vel memoriae realis-vicis.
● Climate et EMC PDF B, E1.
● nulla potentia copia nisi legendi aqua consummatio.
● Securus addere et ponere aquam metris et collectores.
2. Ars electronic
| Voltage operantes | Opus temperatus | Current Working | Datacomms |
| DC9-15V (RS CDLXXXV) / DC24-36V (M-bus) | -10 ~ XLV ℃ | ≤9ma | Rs-CDLXXXV, M-bus |
III. Caput damnum curva

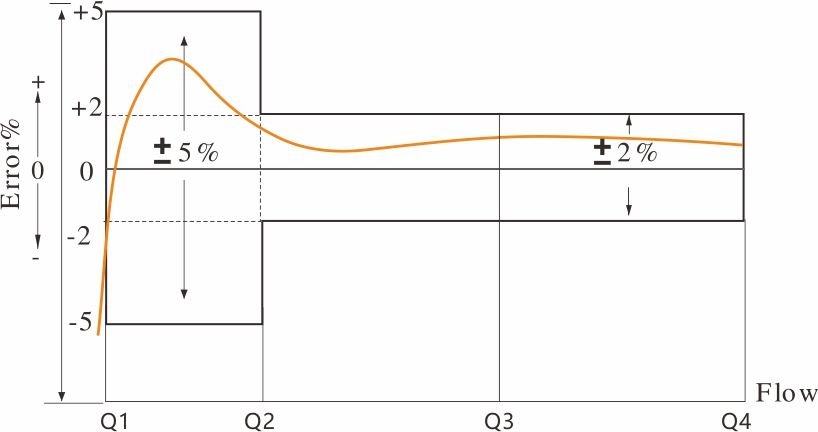

IV. ERROR curvae
V. Installation dimensionem
| Item non | Lxsgy, 15e | Lxsgy, 20E | Lxsgy, 25e |
|
| |
| L1 | mm | 260 | 295 | 345 | 354 | 373 |
| L | mm | 165 | 190 | 225 | 230 | 245 |
| H | mm | 125 | 125 | 130 | 115 | 155 |
| W | mm | 95 | 95 | 95 | 110 | 125 |
| Filum | D (mm) | G3 / IV " | G1 " | G1 1/4 " | G1 1/2 " | G2 " |
| d (mm) | R1 / II | R3 / IV | R1 | R1 1/4 | R1 1/2 | |
| Pondus | Cum Unionibus (kg) | 1.2 | 1.3 | 1.5 |
|
|
| sine unionibus (kg) |
|
|
|
|
| |
VI. Main technica parametri
| Model Number | Lxsgy, 15e | Lxsgy, 20E | Lxsgy, 25e |
|
| ||||||||||
| Nominis diameter (DN) [mm] | 15 | 20 | 25 | 32 | 40 | ||||||||||
| Ratio Q3 / Q1 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 | R80 | R100 | R160 |
| ONERO fluxus rate (Q4) [M³ / h] | 3.125 | 3.125 | 3.125 | 5 | 5 | 5 | 7.875 | 7.875 | 7.875 | 12.5 | 12.5 | 12.5 | 20 | 20 | 20 |
| Permanent fluxus rate (Q3) [M³ / h] | 2.5 | 2.5 | 2.5 | 4 | 4 | 4 | 6.3 | 6.3 | 6.3 | 10 | 10 | 10 | 16 | 16 | 16 |
| Transitional fluxus rate (Q2) [M³ / h] | 0.05 | 0.04 | 0.025 | 0.08 | 0.064 | 0.04 | 0.126 | 0.1 | 0.063 | 0.2 | 0.16 | 0.1 | 0.32 | 0.256 | 0.16 |
| Minimum fluxus rate (Q1) [M³ / h] | 0.032 | 0.025 | 0.015 | 0.05 | 0.04 | 0.025 | 0.08 | 0.063 | 0.039375 | 0.125 | 0.1 | 0.0625 | 0.2 | 0.16 | 0.1 |
| Genus accuracy | 2 | ||||||||||||||
| Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι) | ± V% | ||||||||||||||
| Maximum permissibilis error ad superius fluunt rate zonam (mpeμ) | ± II% ad aquam habens temperatus ≤30 ℃ | ||||||||||||||
| Genus temperatus | T30, T50 | ||||||||||||||
| Aqua pressura classes | Map XVI | ||||||||||||||
| Pressura-damnum classes | △ P63 | ||||||||||||||
| Significat range [M³] | XCIX CMXCIX | ||||||||||||||
| Resolution de significans fabrica [M³] | 0.00005 | ||||||||||||||
| Flue profile sensum classes | U10 D5 | ||||||||||||||
| Orientatio limitation | Horizontal | ||||||||||||||
