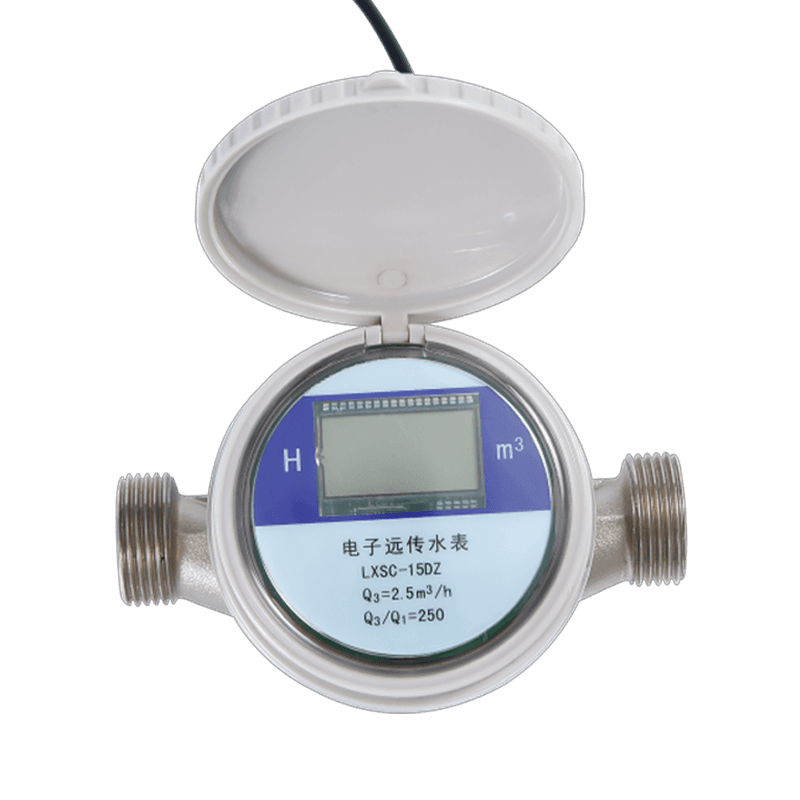

Una-jet wired remotis immaculatam corpus aqua meter cum digital screen, non valvae control

In domo / Productio / Wired remotis aqua meter / Una-jet wired remotis immaculatam corpus aqua meter cum digital screen, non valvae control
Una-jet wired remotis immaculatam corpus aqua meter cum digital screen, non valvae control
  • Una-jet wired remotis immaculatam corpus aqua meter cum digital screen, non valvae control

Km02-08

Una-jet wired remotis immaculatam corpus aqua meter cum digital screen, non valvae control

Haec series products adopt a photoelectric recta Lectio moduli legere aqua consummatio data et upload eam per specialem filum. Totam ratio ex aqua meter collector et administratione centrum. Hoc est recta legere munus, non aedificavit, in altilium, diu muneris vitae, IMPERVIUS, Antistatic, humorem-probationem, antidust, anti-magnetica intercessiones, libitum imperium valvae, et princeps Wathoof Level.

Contact UsUna-jet wired remotis immaculatam corpus aqua meter cum digital screen, non valvae control
PREV: Arido genus wired remotis aqua meter (pulsum) NEXT:Una-jet wired remotis aeris corpus frigida aqua meter
Una-jet wired remotis immaculatam corpus aqua meter cum digital screen, non valvae control

Descriptio

I. Features

  • Una-jet L Digital Longinquus aqua meter

  • Arida-type subcriptio, magnetica coegi

  • Material, ferrum, plastic, aes, immaculatam

  • Humorem, probationem, sol-probationem, anti-fluctuation, anti-stabilis, anti-magnetica intercessiones, anti-glacians, ip68

  • Aqua consummatio potest legere vel memoriae tempore

  • Environment: B, E1

  • Nulla potestate copia nisi legendi aqua consummatio

  • Facile addere et aquam metris collectores

2. Electronic ars

Voltage operantes Opus temperatus Current Working Output
DC9-15V (RS-CDLXXXV) 0 ℃ ~ XLV ℃ ≤9ma Rs-CDLXXXV

III. Caput damnum curva

IV. ERROR curvae

V. Installation dimensionem

Item non LXSGY, XV
L mm 110
H mm 80
W mm 70
Connection Thread: D (mm) G3 / IV "
d (mm) R1 / II
sine unionibus
kg 		0.47

VI. Main technica parametri

Model Number LXSGY, XV
Nominis diameter (DN) [mm] 15
Ratio Q3 / Q1 250
ONERO fluxus rate (Q4) [M³ / h] 3.125
Permanent fluxus rate (Q3) [M³ / h] 2.5
Transitional fluxus rate (Q2) [M³ / h] 0.025
Minimum fluxus rate (Q1) [M³ / h] 0.015
Genus accuracy 2
Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι) ± V%
Maximum permissibilis error est
Et superius fluunt rate zona (MPEμ) 		± II% ad aquam habens temperatus ≤30 ℃
± III% ad aquam habens temperatus> XXX ℃
Genus temperatus T30, T50
Aqua pressura classes: Map XVI
Pressio-damnum classes: △ P63
Significans range [ m³ ]: XCIX CMXCIX
Resolutio
significans fabrica [ m³ ] 		0.00005
Flue profile sensum classes U10 D5
Orientatio limitation Horizontalis
Interface & Communication M-bus, Rs485 Lorawan, Pulse
