Km01-02
Haec series products sunt wireless remotis aqua metris quod separat mechanicus pars intelligentes moduli omnino et upload aquam consummatio per NB \ Lora Internet. In usum processus of repetita computatis problems, usum algorithms ad identify, ut accurate de notitia. Mechanica et electrica separationem modus installation, bonum, Contanguerit, diu servitium vitae components
Descriptio
I. Features
● Multi-Jet Vane Rota.
● aridam type subcriptio, magnetica coegi, anti-magnetica intercessiones, anti-glacians, diu terminus lectio.
● split genus, separatum signantes structuram, facile ad reponere et ponere, humidum-probationem, ip68.
● Replaceable altilium camera consilio.
● capere firmum NB \ Lora Internet signum transmissione technology.
● Oratio aquae consummatio secundum ad 1l, 10L, 100l.
● Material: ferrum, plastic, aes, immaculatam.
● provisum est plumbum sigillum et pulvis-probationem operimentum.
● Climate et EMC PDF B \ o, E1.
2. Electronic parameter
| Datacomms | Current Static | Report | Operating frequency | PRAECIPIO | Recipero |
| Lora | 20μa | Hall \ passibat | 470-510MHz | ≤20dbm | -136 1dbm |
| Nb | 10μa | Hall \ passibat | B1, B2, B5, B8, NB-Lot | ≤23dbm | -131 1dbm |

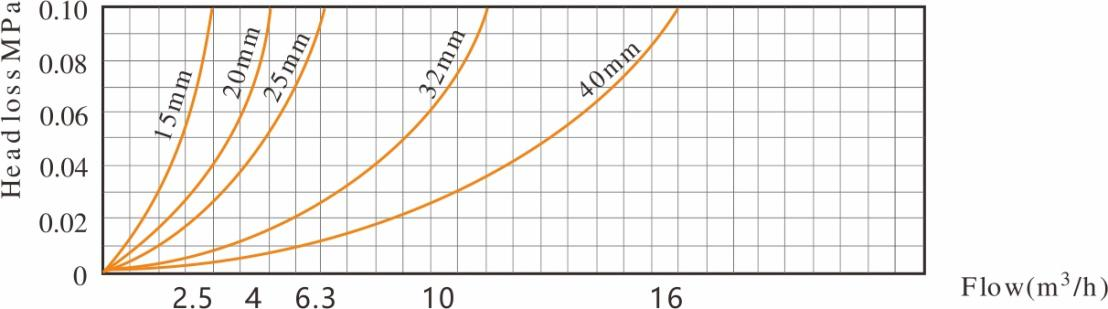

III. Caput damnum curva

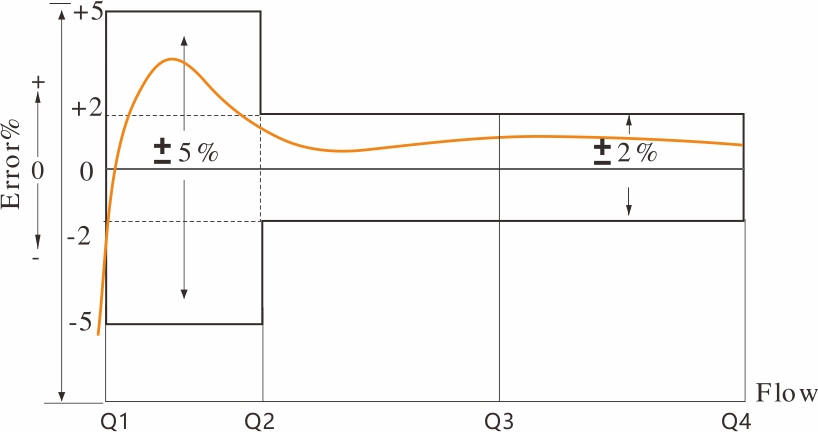

IV. ERROR curvae

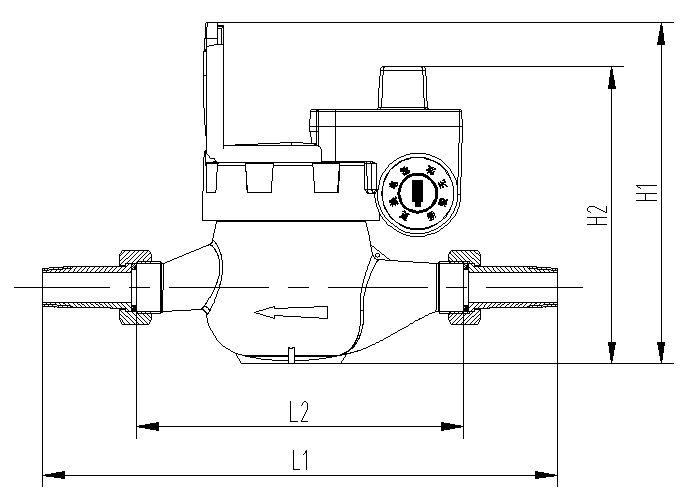

V. Installation dimensionem
| Item non | LXSGW, XV | LxsgW, XX |
| |
| L1 | mm | 260 | 295 | 346 |
| L | mm | 165 | 195 | 225 |
| H | mm | 150 | 150 | 150 |
| W | mm | 90 | 90 | 100 |
| Filum | D (mm) | G3 / IV " | G1 " | G1 1/4 " |
| d (mm) | R1 / II | R3 / IV | R1 | |
| Pondus | Cum Unionibus (kg) |
|
|
|
| sine unionibus (kg) | 1 | 1.2 |
| |
VI. Main technica parametri
| Model Number | LXSGW, XV | LxsgW, XX |
|
|
| |||||
| Nominis diameter (DN) [mm] | 15 | 20 | 25 | 32 | 40 | |||||
| Ratio Q3 / Q1 | R80 | R100 | R80 | R100 | R80 | R100 | R80 | R100 | R80 | R100 |
| ONERO fluxus rate (Q4) [M³ / h] | 3.125 | 3.125 | 5 | 5 | 7.875 | 7.875 | 12.5 | 12.5 | 20 | 20 |
| Permanent fluxus rate (Q3) [M³ / h] | 2.5 | 2.5 | 4 | 4 | 6.3 | 6.3 | 10 | 10 | 16 | 16 |
| Transitional fluxus rate (Q2) [M³ / h] | 0.05 | 0.04 | 0.08 | 0.064 | 0.126 | 0.1 | 0.2 | 0.16 | 0.32 | 0.256 |
| Minimum fluxus rate (Q1) [M³ / h] | 0.032 | 0.025 | 0.05 | 0.04 | 0.08 | 0.063 | 0.125 | 0.1 | 0.2 | 0.16 |
| Genus accuracy | 2 | |||||||||
| Maximum permissibilis error pro inferioribus fluunt rate zonam (mpeι) | ± V% | |||||||||
| Maximum permissibilis error ad superius fluunt rate zonam (mpeμ) | ± II% ad aquam habens temperatus ≤30 ℃ | |||||||||
| Genus temperatus | T30, T50 | |||||||||
| Aqua pressura classes | Map XVI | |||||||||
| Pressura-damnum classes | △ P63 | |||||||||
| Significat range [M³] | XCIX CMXCIX | |||||||||
| Resolution de significans fabrica [M³] | 0.00005 | |||||||||
| Flue profile sensum classes | U10 D5 | |||||||||
| Orientatio limitation | Horizontal | |||||||||
